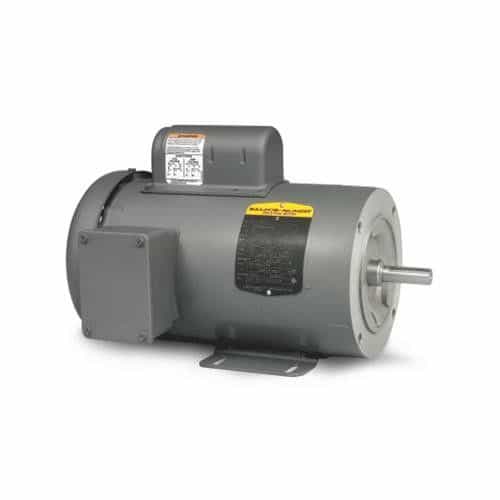

Baldor CL3504 General Purpose Motor - 1/2 HP, Single Phase, 56C, 1725 RPM

Brand:
Baldor
Mfr. Model #:
CL3504
KR Part #:
MBCL3504
Weight:
28.00 lbs
GTIN:
781568109250
Usually Ships in 2 Weeks
MSRP
$672.86
Now Only!
$448.57
starstarstarstarstar (0)
A totally enclosed, fan-cooled general purpose electric motor with face mount capability. 1/2 HP, 115/230V.
More Info...



Technical Specifications

Horsepower: 1/2
Phase: 1
Amps: 7.4/3.7
RPM: 1725
Shaft Diameter: 15.875 millimeter
Voltage AC: 115/230

Product Description

General Purpose AC Motor - 1/2 HP

These NEMA 56 frame capacitor-start AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface.
Specifications:
  • Single phase
  • Capacitor start
  • 1/2 HP
  • 115/230 AC
  • 1725 RPM
  • 56C Frame, Face mount
  • Shaft diameter: 5/8in.
  • Weight: 28 lbs.
  • Made in the USA
