General Purpose Motor

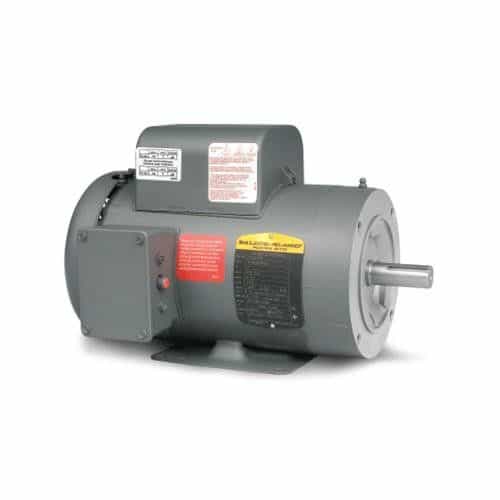

The CL3507 motor is engineered as a general-purpose motor. Motor is used in applications where only single-phase power is needed. Runs at 1725 RPM and generates .75 horsepower. Applications include car washes, aggregate, cement, air handling, chemical, oil, gas, food, beverage, pharmaceutical, paper, forest, and unit & baggage handling.

Specifications:

• Enclosure: TEFC
• Product Family: General Purpose
• Frame: 56C
• Frame Material: Steel
• Speed: 1725 RPM
• Phase: 1
• Output @ Frequency: .750 HP @ 60
• HZ Frequency: 60.00 Hz
• Ambient Temperature: 40 °C
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ, 115.0 V @ 60 HZ
• Agency Approvals: CSA, UR
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Current @ Voltag e= 4.200 A @ 230.0 V, 5.400 A @ 208.0 V, 8.400 A @ 115.0 V
• Design Code: N
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 72.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• High Voltage Full Load Amps: 4.2 a
• Front Face Code: Standard
• Insulation Class: F
• KVA Code: J
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 6 @ 18 AWG
• Motor Type: 3428LC
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 12.47 IN
• Power Factor: 78
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Standard
• Service Factor: 1.25
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
