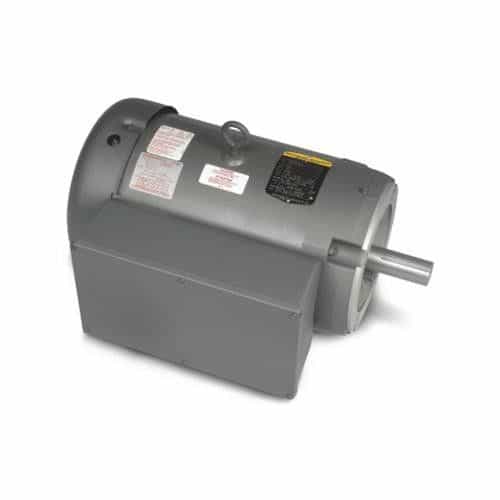

Baldor 5HP Single Phase Electric Motor

The Baldor CL3612TM motor is engineered for durability in harsh applications such as car washes. The motor frame is crafted with steel and is designed to meet NEMA premium efficiency standards. Additionally, the TEFC (Totally Enclosed Fan-Cooled) enclosure protects the motor from external contaminants in demanding environments with high moisture and dirt levels, extending its lifespan and reducing maintenance needs. The C-Face pulley design facilitates easy mounting and a secure fit, making it an ideal choice for heavy-duty applications. Whether used in industrial pressure washers, steam cleaners, air compressors, and other machinery, this Baldor 5HP single-phase electric motor delivers consistent power and efficiency. This motor has a power output of 5 horsepower and a maximum shaft rotation speed of 1725 RPM. Whether you need to power new machinery or need a replacement motor for equipment already being used in your facility the Baldor CL3612TM delivers reliable service and superior performance.

Specifications:

• Catalog Number: CL3612TM
• Enclosure: TEFC
• Frame: 184TC
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Cap Start, Cap Run
• Output @ Frequency: 5.000 HP @ 60 HZ
• Phase: 1
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 208.0 Volt @ 60 HZ, 230.0 Volt @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: UR, CSA
• Ambient Temperature: 40 °C
• Auxillary Box: No Auxillary Box
• Auxillary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 23.000 A @ 230.0 Volt, 23.600 A @ 208.0 Volt
• Design Code: L
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 80.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 23.0 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Not Inverter
• KVA Code: J
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 2 @ 10 AWG, A PH
• Motor Type: 3646LC
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 18.05 IN
• Power Factor: 88
• Product Family: General Purpose
• Pulley End Bearing: Type Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.00
• Shaft Diameter: 1.125 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1725 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct On-Line
• Thermal Device - Bearing: None
• Thermal Device - Winding: Do Not Use
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1 Manual: Thermal Overload
• Winding Thermal 1 Location: KO
• Winding Thermal 2: None
• Weight: 104.00 lbs.

Features:

• Pressure-cast aluminum end plates with ribbed design for rigidity
• Ball bearings
• Locked drive end bearing
• Heavy gauge steel frame

Applications:

• Car Washes
• Pressure Washers
• Gear Reducers
• Material Handling
• Machine Tools
• Conveyors
• Pumps
• Fans
