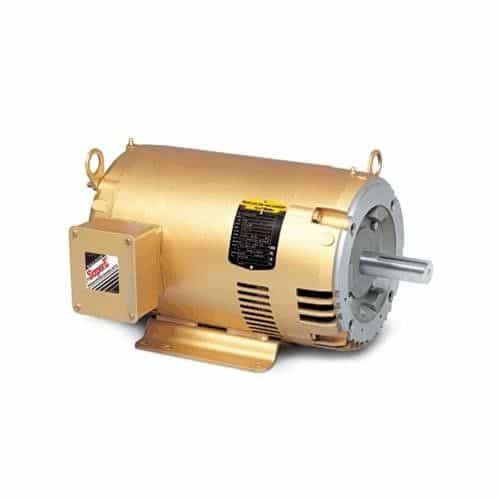

General Purpose Motor

The motor frame is crafted with steel. Able to be use in multiple applications being designed as a general-purpose motor. Motor is suited for mounting in any position. Created around NEMA premium efficiency standards with class F insulation. Motors with TR suffix have roller bearings for heavy belted loads. The motor's efficiency at 100% load is 89.5 %efficient. Outputs 5 horsepower, runs at 1750 RPM and covers 3 phases. Common uses in the car wash industry - compressors, pumps, fans, conveyors.

Specification:

• Catalog Number: CEM3218T

• Enclosure: OPSB

• Frame: 184TC

• Frame: Material Steel

• Frequency: 60.00 Hz

• Output @ Frequency: 5.000 HP @ 60 HZ

• Phase: 3

• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ

• Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ

• XP Class and Group: None

• XP Division: Not Applicable

• Agency Approvals: UR, CSA EEV, CSA

• Ambient Temperature: 40 °C

• Auxillary Box: No Auxillary Box

• Auxillary Box Lead Termination: None

• Base Indicator: Rigid

• Bearing Grease Type: Polyrex EM (-20F +300F)

• Blower: None

• Current @ Voltage: 13.200 A @ 230.0 V, 14.000 A @ 208.0 V, 6.600 A @ 460.0 V

• Design Code: B

• Drip Cover: No Drip Cover

• Duty Rating: CONT

• Efficiency @ 100% Load: 89.5 %

• Electrically Isolated Bearing: Not Electrically Isolated

• Feedback Device: NO FEEDBACK

• High Voltage Full Load Amps: 6.6 a

• Front Face Code: Standard

• Front Shaft Indicator: None

• Heater Indicator: No Heater

• Insulation Class: F

• Inverter Code: Inverter Ready

• KVA Code: J

• Lifting Lugs: Standard Lifting Lugs

• Locked Bearing Indicator: Locked Bearing

• Motor Lead Exit: Ko Box

• Motor Lead Termination: Flying Leads

• Motor Lead Quantity/Wire Size: 9 @ 16 AWG

• Motor Type: 3640M

• Mounting Arrangement: F1

• Number of Poles: 4

• Overall Length: 16.50 IN

• Power Factor: 80

• Product Family: General Purpose

• Pulley End Bearing: Type Ball

• Pulley Face Code: C-Face

• Pulley Shaft Indicator: Standard

• Rodent Screen: None

• Service Factor: 1.15

• Shaft Diameter: 1.125 IN

• Shaft Extension Location: Pulley End

• Shaft Ground Indicator: No Shaft Grounding

• Shaft Rotation: Reversible

• Shaft Slinger Indicator: No Slinger

• Speed: 1750 rpm

• Speed Code: Single Speed

• Motor Standards: NEMA

• Starting Method: Direct on line

• Thermal Device - Bearing: None

• Thermal Device - Winding: None

• Vibration Sensor Indicator: No Vibration Sensor

• Winding Thermal 1: None

• Winding Thermal 2: None
