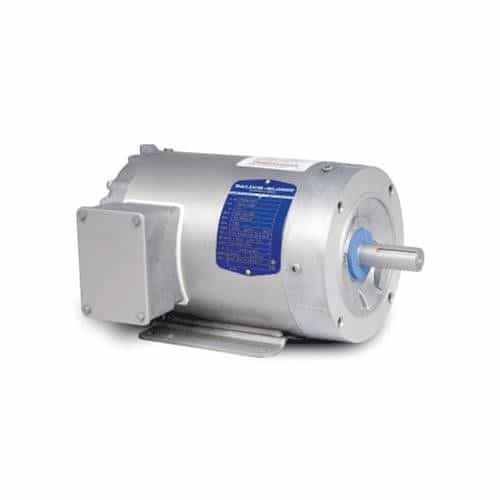

Paint Free Electric Motor

Engineered for applications with corrosive chemicals and frequent high-pressure wash downs. These chemicals and wash downs may compromise the surface of a normally painted motor surface. Common applications are conveyers and pumps in car washes. Motor's frame base, shaft and hardware are constructed with 300 Series stainless steel.

Specifications:


• Catalog Number: CSWDM3538

• Enclosure: TENV

• Frame: 56C

• Frame Material: Stainless Steel

• Output @ Frequency: .500 HP @ 60 HZ

• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ

• Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ

• Agency Approvals: CSA, UR

• Base Indicator: Rigid

• Bearing Grease Type: Polyrex EM (-20F +300F)

• Current @ Voltage: .800 A @ 460.0 V

• Insulation Class: F

• KVA Code: M

• Locked Bearing Indicator: Locked Bearing

• Motor Lead Quantity/Wire Size: 9 @ 18 AWG

• Motor Lead Exit: Ko Box

• Motor Lead Termination: Flying Leads

• Motor Type: 3512M

• Mounting Arrangement: F1

• Power Factor: 69

• Product Family: Wash Down Paint Free

• Pulley End Bearing Type: Sealed Bearing

• Pulley Face Code: C-Face

• Pulley Shaft Indicator: Standard

• Shaft Extension Location: Pulley End

• 1.600 A @ 230.0 V

• 1.800 A @ 208.0 V

• Design Code: B

• Duty Rating: Continuous

• Electrically Isolated Bearing: Not Electrically Isolated

• Front Face Code: Standard

• Shaft Rotation: Reversible

• Speed Code: Single Speed

• Motor Standards: NEMA

• Starting Method: Direct on line

Common Applications:


• Conveyors

• Pumps

Common Industries:


• Car Wash

• Food & Beverage

• Pharmaceuticals
