1740 RPM - Washdown Motor

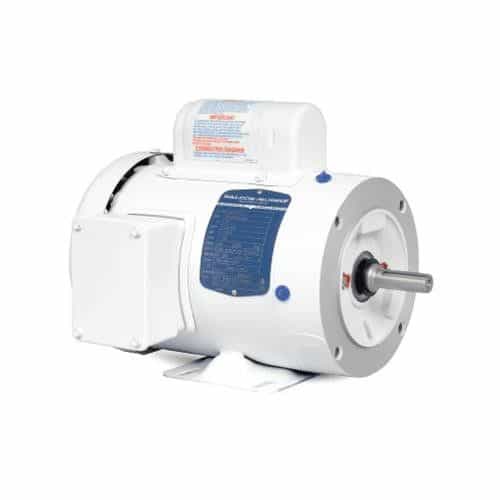

The Baldor CWDL3504 is a motor engineered to endure applications that experience frequent wash downs during operation making it perfect for car washes. Designed with a totally-enclosed fan-cooled enclosure and a 56C frame. It tolerates a maximum speed of 1740 RPM.

CWDL3504 Specifications:

• Enclosure: TEFC
• Frame: 56C
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Cap Start, Induction Run
• Output @ Frequency: .500 HP @ 60 HZ
• Phase: 1
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency:
  • 230.0 V @ 60 HZ
  • 115.0 V @ 60 HZ
• XP Class and Group: None
• XP Division: Not Applicable
• Agency Approvals:
  • CSA
  • UR
• Ambient Temperature: 40 °C
• Auxillary Box: No Auxillary Box
• Auxillary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage:
  • 3.500 A @ 230.0 V
  • 7.000 A @ 115.0 V
  • 3.450 A @ 208.0 V
• Design Code: N
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 66.0 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 3.5 a
• Front Face Code: Standard
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Not Inverter
• KVA Code: L
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 6 @ 18 AWG
• Motor Type: 3520L
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 12.23 IN
• Power Factor: 70
• Product Family: Wash Down
• Pulley End Bearing Type: Sealed Bearing
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• Service Factor: 1.25
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: Shaft Slinger
• Speed: 1740 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
