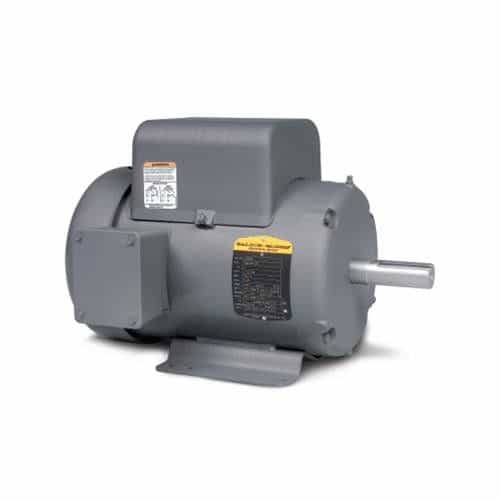

Baldor L3609T General Purpose Motor Single Phase Enclosed 3HP, 1725RPM, 60HZ
Brand:
Mfr. Model #:
L3609T
KR Part #:
MBL3609T
Weight:
80.00 lbs
GTIN:
781568100752
(0)Engineered for harsh applications. Motor is 78.0 % efficient at a full load. Runs at a speed of 1725 RPM and outputs 3 horsepower.
Prop 65
Freight Only
Product Description
3 Horsepower Electric Motor
Engineered for harsh applications such as those found in car washes. The motor frame is crafted with steel. Able to be use in multiple applications being designed as a general-purpose motor. Created around NEMA premium efficiency standards. The motor's efficiency at full load is 78.0 % efficient. Outputs 3 horsepower, covers 3 phases with a speed of 1725 RPM. Great for use with common applications found in car washes such as compressors, pumps, fans, conveyors.
Specifications:
- Catalog Number: L3609T
- Enclosure: TEFC
- Frame: 184T
- Frame Material: Steel
- Speed: 1725 rpm
- Frequency: 60.00 Hz
- Output @ Frequency: 3.000 HP @ 60 HZ
- Phase: 1
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency: 230.0 V @ 60 HZ, 115.0 V @ 60 HZ
- Agency Approvals: CSA, UR
- Ambient Temperature: 40 °C
- Auxillary Box: No Auxillary Box
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Current @ Voltage: 14.000 A @ 230.0 V, 15.500 A @ 208.0 V, 28.000 A @ 115.0 V
- Design Code: L
- Drip Cover: No Drip Cover
- Duty Rating: Continuous
- Efficiency @ 100% Load: 78.0 %
- Electrically Isolated Bearing: Not Electrically Isolated
- High Voltage Full Load Amps: 14.0 a
- Front Face Code: Standard
- Insulation Class: F
- KVA Code: K
- Motor Lead Exit: Ko Box
- Motor Lead Termination: Flying Leads
- Motor Lead Quantity/Wire Size: 4 @ 14 AWG, A PH
- Motor Type: 3634LC
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 16.56 IN
- Power Factor: 85
- Product Family: General Purpose
- Pulley End Bearing: Type Ball
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Service Factor: 1.00
- Shaft Diameter: 1.125 IN
- Shaft Extension Location: Pulley End
- Shaft Rotation: Reversible
- Speed Code: Single Speed
- Motor Standards: NEMA
- Starting Method: Direct on line
