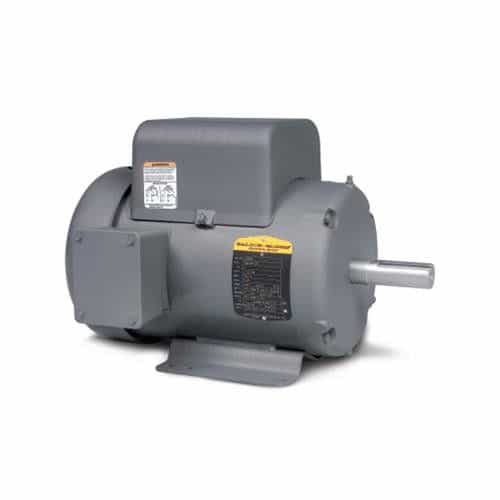

3 Horsepower Electric Motor

Engineered for harsh applications such as those found in car washes. The motor frame is crafted with steel. Able to be use in multiple applications being designed as a general-purpose motor. Created around NEMA premium efficiency standards. The motor's efficiency at a full load is 78.0 % efficient. Outputs 3 horsepower, covers 3 phases with a speed of 1725 RPM. Great for use with common applications found in car washes such as compressors, pumps, fans, conveyors.

Specifications:

• Catalog Number: L3609TM

• Enclosure: TEFC

• Frame: 184T

• Frame Material: Steel

• Frequency: 60.00 Hz

• Output @ Frequency: 3.000 HP @ 60 HZ

• Phase: 1

• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ

• Voltage @ Frequency: 115.0 V @ 60 HZ, 230.0 V @ 60 HZ

• Agency Approvals: UR, CSA

• Ambient Temperature: 40 °C

• Base Indicator: Rigid

• Bearing Grease Type: Polyrex EM (-20F +300F)

• Current @ Voltage: 14.500 A @ 230.0 V, 28.000 A @ 115.0 V

• Design Code: L

• Drip Cover: No Drip Cover

• Duty Rating: Continuous

• Efficiency @ 100% Load: 78.0 %

• Electrically Isolated Bearing: Not Electrically Isolated

• High Voltage Full Load Amps: 14.5 a

• Front Face Code: Standard

• Insulation Class: F

• KVA Code: K

• Locked Bearing Indicator: No Locked Bearing

• Motor Lead Exit: Ko Box

• Motor Lead Termination: Flying Leads

• Motor Lead Quantity/Wire Size: 4 @ 14 AWG, A PH

• Motor Type: 3634LC

• Mounting Arrangement: F1

• Number of Poles: 4

• Overall Length: 16.54 IN

• Power Factor: 85

• Product Family: General Purpose

• Pulley End Bearing Type: Ball

• Pulley Face Code: Standard

• Pulley Shaft Indicator: Standard

• Service Factor: 1.00

• Shaft Diameter: 1.125 IN

• Shaft Extension Location: Pulley End

• Shaft Rotation: Reversible

• Speed: 1725 rpm

• Speed Code: Single Speed

• Motor Standards: NEMA

• Starting Method: Direct on line

• Thermal Device - Bearing: None

• Thermal Device - Winding: Do Not Use

• Winding Thermal 1: Manual Thermal Overload
