Procon 104E330F11XX Series 4 Bolt-On Rotary Vane Pump - 330 GPH, 1/2 in. Ports
Brand:
Mfr. Model #:
104E330F11XX
KR Part #:
PP2539A
Weight:
3.51 lbs
Availability:
3
(0)Brass rotary vane pump with 1/2" ports and a 330 GPH flow rate. Operates with minimal vibration and pulsation. Great for reverse osmosis applications.
Prop 65
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 330
RPM: 1725
Product Description

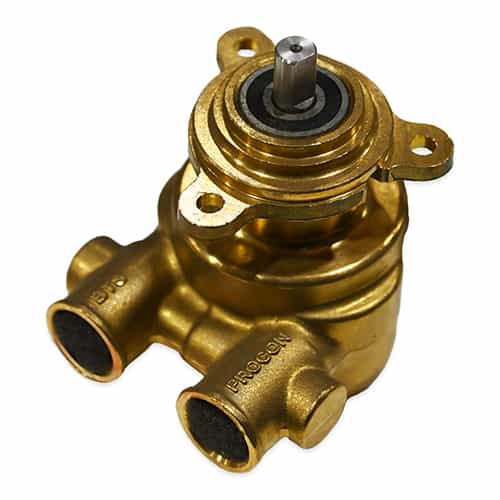

330 GPH Brass Rotary Vane Pump
The Procon 104E330F11XX pump is a brass rotary vane pump that is part of Procon's Series 4 line. This positive displacement pump has 1/2" inlet and outlet ports, FDA grade nitrile seals, and a bolt-on mount. It has a 330 GPH flow rate and no pressure rating.
This Series 4 rotary vane pump has low-vibration operation and self-priming capabilities. It is ideal for reverse osmosis and boosting applications.
Dimensions: 4.1" x 3.88" x 4.48"
Specifications:
- Mounting and Drive: Bolt-On with Single Flat Drive
- Flow Rate: 330 GPH
- Elastomer: FDA Grade Nitrile
- Rotation: Clockwise
- Clearances: Standard
- Valve Type and Configuration: No Relief Valve
- Default Pressure Setting: No Setting
- Body Material: Brass
- Nominal Speed: 1725 RPM
- Self Priming: 6' maximum lift
- Inlet Port: 1/2" NPT
- Outlet Port: 1/2" NPT
Features:
- Self Priming
- Maintenance Free
- Low Vibration and Pulsation Characteristics
Applications:
- Circulation
- Reverse Osmosis
- Booster
- Solar Applications
- Hydraulic Systems
- Desalination
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
