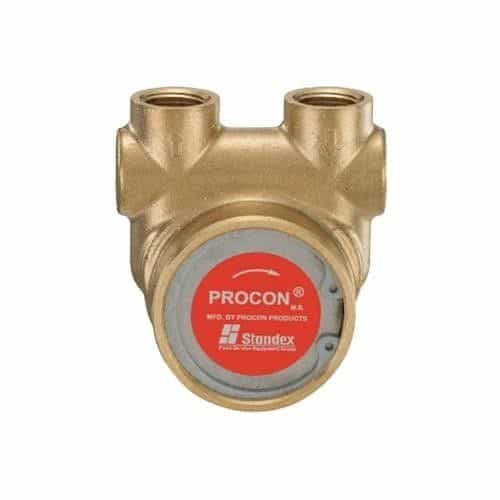

Clamp-On Pump

Procon's1 02D100F11BDBD is a clamp-on Series 2 positive displacement rotary vane pump is capable of self-priming in water with a 6 ft. maximum lift. This pump is equipped with 3/8 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Ideal for use in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:


• Product Classification: Rotary Vane Pump

• Agency Approvals: Non-Food Grade (1.5% Max. Lead)- No Agency Approval

• Series: Series 2 Brass

• Mounting and Drive Configuration: Clamp-On with Slotted Shaft Only - No Coupling

• Flowrate: 100 GPH

• Elastomer: FDA Grade Nitrile - Type 21 or Type 2106 Used Interchangeably

• Rotation / Slinger / Passivation / Strainer: Clockwise

• Clearances: Standard Clearance

• Valve Type and Configuration: Plastic, Hi Temp-Solid

• Pressure Range: 30 to 59 PSI - Default Setting 50 PSI

• Body Material Type: Brass

• Nominal Speed: 1725 RPM

• Typical Horsepower Required: .25 To .50 HP

• Rotation (Viewed from Nameplate End): Clockwise

• Dry Weight: Approximately 2.5 Lbs.

• Dimensions: 3.56" X 3.49" X 3.86"

• Self-Priming (Water): 6 Ft. Maximum Lift

• Port Size: 3/8 NPT Inlet and Outlet


Applications:


• Carbonation

• Espresso/Coffee

• Welding

• Cold Carb Circulation

• Reverse Osmosis

• Beer Chillers

• Pesticide Systems

• Solar Applications

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
