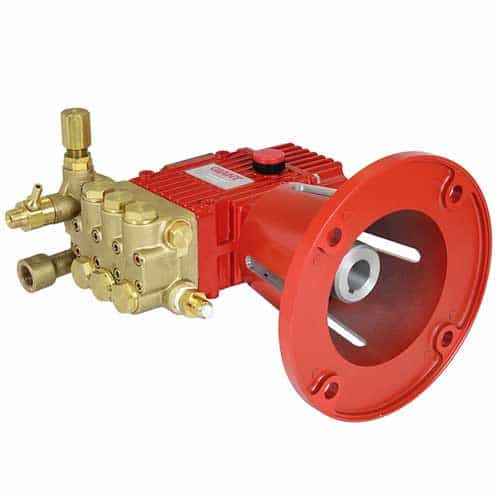

Giant Pump 220E Series Right Shaft TC Face Electric Motor - 1-1/8in. with Unloader

Brand:
Mfr. Model #:
P220RE2FU
KR Part #:
PUP220RE2FU
Weight:
11.11 lbs
Call For Availability
MSRP
$1,117.99
Now Only!
$524.49
starstarstarstarstar (0)
An electric plunger pump from the 220E Series. Features right shaft, TC Face Electric Motor with included unloader.



Technical Specifications

Max PSI: 2500
Stroke: 14.1 millimeter
Max GPM: 4.7
Shaft Diameter: 24 millimeter
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Max Temperature: 160 degrees F

Product Description

220E Series Pump

This is an American-made triplex plunger positive displacement pump with reciprocating plungers. Aluminum crankcase with sight glass and vented dipstick, forged, through-hardened, ground and polished crankshaft, bronze connecting rods, hardened stainless steel plunger bases, solid ceramic plungers, fabric reinforced nitrile seals, and stainless steel valves and forged brass manifold.

Includes these Options: bell housing (to connect to gasoline, diesel, electric or hydraulic drive), and unloader.

Giant P220RE2FUSpecifications:

  • Flow: 4.7 GPM
  • Pressure (Continuous): 2000 PSI
  • Pressure (Intermittent): 2500 PSI
  • Maximum Crankshaft Speed: 1750 RPM
  • Maximum Inlet Pressure: 145 PSI
  • Plunger Diameter: 0.71"
  • Stroke: 0.56"
  • Max. Temperature of Pumped Fluids: 160 degrees F
  • Inlet Ports: (2) 1/2" BSP
  • Discharge Ports: (2) 3/8" BSP
  • Crankshaft Diameter: 24 mm
  • Shaft Mounting: Right Side Facing Manifold
  • Weight: 11.7 lbs
  • Crankcase Oil Capacity: 7.5 fl.oz.
