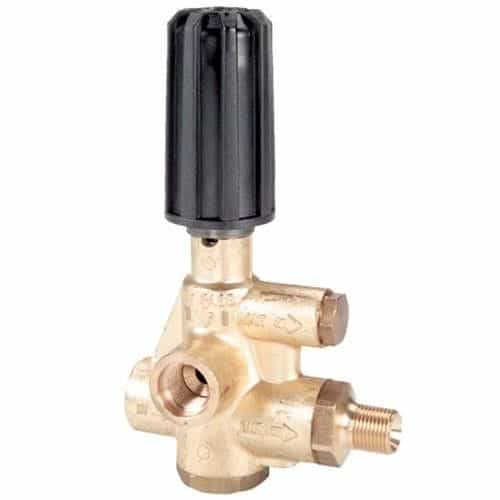

General Pump ZKHM Trapped Pressure Unloader
Brand:
Mfr. Model #:
ZKHM
KR Part #:
GPUZKHM
Weight:
2.43 lbs
GTIN:
682491027881
(0)This unloader is ideal for use in systems incorporating a gasoline engine. Maximum discharge pressure 3000 PSI.
Technical Specifications
Max GPM: 10.8
Max PSI: 3000
Max Temperature: 165 degrees F
Product Description
Regulating Unloader
This unloader from General Pump eliminates back pressure in the system when pulling a manual start engine. It features an adjustable pressure control knob.
Dimensions: 2.75" x 3.75" x 6.5"
Features:
- Maximum Volume: 10.8 GPM
- Maximum Discharge Pressure: 3000 PSI
- Maximum Temperature: 165 degrees Fahrenheit
Port Sizes:
- Inlet: 3/8"-19 BSP-F
- Outlet: 1/4"-19 BSP-F
- Outlet: 3/8"-19 BSP-M
- Bypass (2): 3/8"-19 BSP-F
