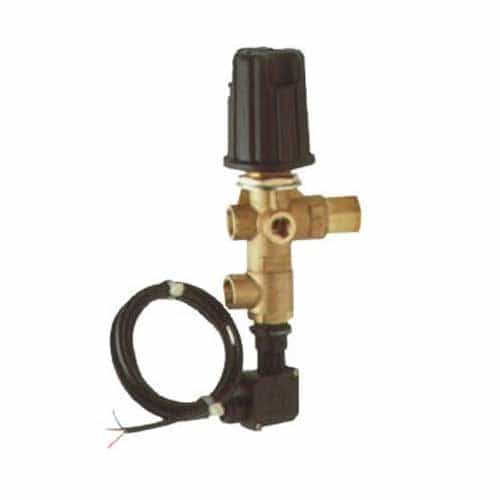

General Pump YVB9KMS2 Trapped Pressure Unloader with Microswitch - 3650 PSI

Brand:
Mfr. Model #:
YVB9KMS2
KR Part #:
GPU9KMS2
Weight:
2.10 lbs
Low Stock Warning
MSRP
$297.40
Now Only!
$112.53
starstarstarstarstar (0)
Brass body pressure unloader with 3/8 in. ports. 3,650 PSI maximum pressure.



Technical Specifications

Inlet Port: 3/8 inch
Max GPM: 8
Max PSI: 3650
Max Temperature: 195 degrees F

Product Description

3650 PSI Brass Pressure Regulation Valve

The General Pump YVB9KMS2 pressure unloading device is made with highly durable brass and stainless steel. This unloader has 3/8" ports, a 1/4" gauge port, a maximum flow rate of 8 GPM, and a maximum pressure rating of 3650 PSI. Maintain consistent pressure and protect yourself from dangerous spiking.

Specifications:

  • 8 GPM max flow rate
  • 3,200 PSI rated pressure
  • 3,650 PSI maximum pressure
  • 3,650 PSI maximum discharge pressure
  • 3/8" BSP-F inlet port
  • 3/8" BSP-F outlet port
  • 3/8" bypass port
  • 1/4" gauge port
  • Brass construction
  • Stainless steel components
  • Buna-N seals
  • 195° maximum temperature
  • 5 amp switch

Features:

  • Extremely durable construction with brass and stainless steel
  • Easy start-up due to low re-arm pressure
  • Hexagonal discharge check valve to prevent binding
  • Waterproof
  • UL Listed

Pressure Switch:

  • 1 amp ind., 5 amps res.
  • 250 volts
  • 40 lead length

Overall Dimensions:

  • 5.84" x 3.3" x 2.3"
