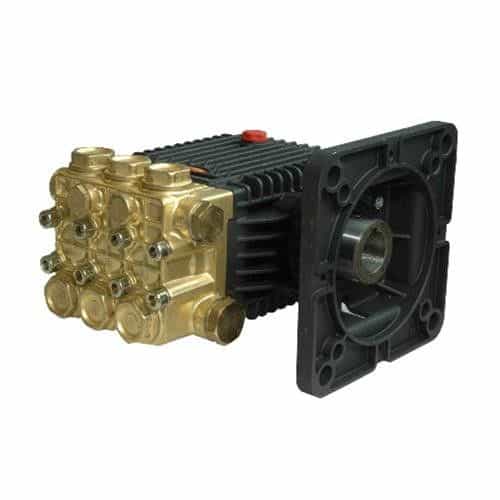

General Pump TX1512E179 TX Series Pump - 2.6 GPM, 3000 PSI, 1750 RPM

Brand:
Mfr. Model #:
TX1512E179
KR Part #:
GPTX1512E179
Weight:
18.00 lbs
GTIN:
682491027195
Out of Stock - Pre-Order Now
MSRP
$995.01
Now Only!
$327.82
starstarstarstarstar (0)
Direct drive triplex plunger pump provides convenience and durability. Features a forged brass manifold with an exclusive lifetime warranty. Produces up to 2.6 GPM at up to 3000 PSI, flanged for direct couple to electric motor.



Technical Specifications

Max GPM: 2.6
Max PSI: 3000
RPM: 1750
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Bore: 15 millimeter
Stroke: 12 millimeter
Shaft Diameter: 28.5 millimeter
Horsepower: 5.3
Crankcase Capacity: 14 ounce

Product Description

3000 PSI 1750 RPM General Pump

The General Pump TX1512E179 Series 63 Triplex Plunger Pump provides excellent service for car wash and pressure washing applications. Features solid ceramic plungers, oversized bearings and connecting rods, and next generation packings for exceptional seal life, supreme durability, and reliability. Produces consistent mid-range flow at high pressures.

Dimensions: 8.6" X 7.9 X 5.7"

  • Flanged for direct couple to electric motor (NEMA 184TC)
  • Set screw for key way
  • Oversized bearings
  • Longer life low and high pressure seals
  • Forged brass manifold with exclusive lifetime warranty

Specifications:

  • Max Volume: 2.6 GPM
  • Max Discharge Pressure: 300 0PSI
  • Max Pump Speed: 1750 RPM
  • Max Inlet Pressure: 125 PSI
  • Shaft: 1/18" Hollow
  • Inlet Port: 1/2"-14 BSPP-F
  • Outlet Port: 3/8"-19 BSPP-F
