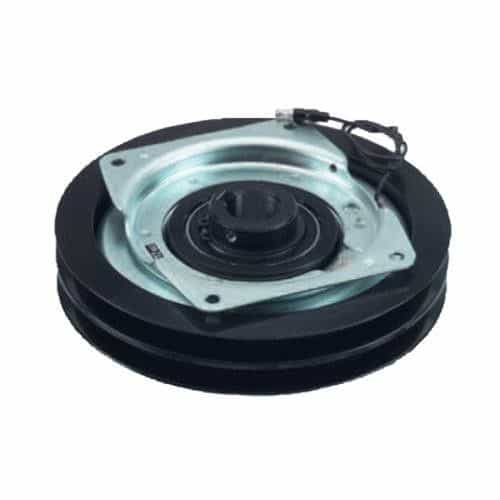

General Pump 100687 mobile clutch for water pumps drives your General Pump 24mm solid shaft 47, 66 and 59(ES) series pumps to initiate water flow. 7" pulley features an "A" groove and fits 24mm shafts, while having a 12V power requirement. The GP clutch is mounted directly to a General Pump by using an adapter plate. Clutch improves cold weather starting, reduces horsepower consumption from the engine, extends pump life, all while being simple to install and easy to operate and maintain!
Specifications:
Pulley Size & Type: 7" - A Groove, 24mm Shaft
Width: 2.25"
Torque After Burnishing: 75 - 95 lbs.
Power Requirement: 12V 47 Watts
Weight: 8 lbs.
Compatible Pumps: 47, 66 and 59(ES) Series
Features:
Solid forged rotor: A one-piece solid forged rotor means no chance of internal parts separation. They have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
High temperature, longer-life grease: Our special long-life grease has shown a significant improvement in life over other standard high temp greases.
E-coating: Where possible, all parts in the clutch are e-coated to give maximum corrosion protection.
High-temperature epoxy coil: To help prevent failure from vibration and outside contaminants, all coils are sealed in the coil shell with a high-temperature epoxy coating.
Forged machined pulley: All GP models use a heavy-duty machined pulley. A stronger pulley resists damage due to abusive environments.
