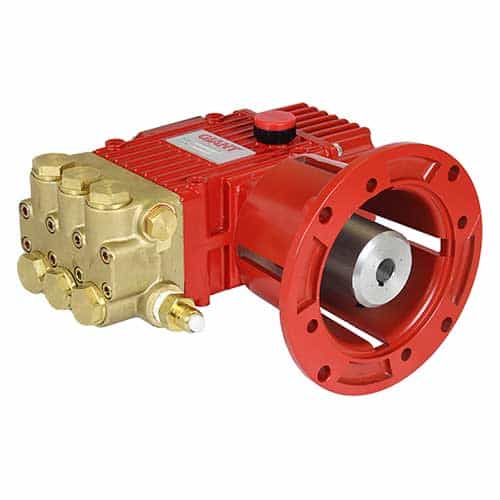

Giant Pumps P221RE1BUT Triplex Plunger Pump - 2.3 GPM, 2000 PSI, 1750 RPM, Right Shaft, 5/8 Inch Electric Motor Flange, Unloader, Thermal Relief Valve

Brand:
Mfr. Model #:
P221RE1BUT
KR Part #:
PUP221RE1BUT
Weight:
11.11 lbs
Call For Availability
MSRP
$1,102.41
Now Only!
$517.17
starstarstarstarstar (0)
This triplex plunger pump features solid ceramic oxide plungers and stainless steel valves for durability. Right shaft equipped with a 1" flange that couples with a gas engine and handles 1750 RPM. Pump produces a maximum flow rate of 2.3 GPM.



Technical Specifications

RPM: 1750
Stroke: 7 millimeter
Shaft Diameter: 24 millimeter
Max Temperature: 160 degrees F
Max PSI: 2000
Inlet Port: 1/2 inch
Crankcase Capacity: 7.5 ounce
Outlet Port: 3/8 inch
Max GPM: 2.3

Product Description

2.3 GPM - Right Shaft Pump

Giant Pumps P221RE1BUT high-pressure pump has a right-side mounted shaft that is flanged with a 5/8 inch coupler for electric motors. It includes an unloader, and a thermal relief valve. Features 18mm ceramic oxide plungers. This pump generates a flow rate of 2.3 GPM and sustains a maximum pressure of 2000 PSI. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:
  • Flow: 2.3 GPM
  • Maximum Discharge Pressure: 2000 PSI
  • Crankshaft Speed: 1750 RPM
  • Power: 3.2 HP
  • Flow (High Speed): 4.2 GPM
  • Maximum Discharge Pressure (High Speed): 2000 PSI
  • Power Consumption (High Speed): 7.2 HP
  • Crankshaft Speed (High): 3450 RPM
  • Intermittent Flow: 2.3 GPM
  • Intermittent Discharge Pressure: 2500 PSI
  • Intermittent Crankshaft Speed: 1750 RPM
  • Intermittent Power Consumption: 4.0 HP
  • Max Temperature: 160 °F
  • Inlet Port Size: (2) 1/2" BSP
  • Discharge Port Size: (2) 3/8" BSP
  • Plunger Diameter: 0.71 in. (18 mm)
  • Stroke: 0.28 in. (7.0 mm)
  • Maximum Inlet Pressure:    145 PSI    10 bar
  • Crankshaft Diameter: 0.98 in. (24 mm)
  • Crankshaft Rotation: Top of Pulley Towards Manifold
  • Key Width: 0.31 in. (8 mm)
  • Crankshaft Mounting: Either Side
  • Crankcase Oil Capacity US: 7.5 fl. oz.
  • Extended Crankcase Oil Capacity: 9.0 fl. oz.
  • Weight: 11.11 lbs.
Includes:
  • 56C Electric Motor Flange - (5 7/8" or 5.11" Diameter)
  • 5/8" Diameter Aluminum Coupler
  • Unloader
  • Thermal Relief Valve
Key Component Materials:
  • Manifold Material: Special Brass
  • Crankcase Material: Aluminum
  • Plunger Material: Solid Ceramic Oxide
  • Valve Material: High Grade Stainless Steel
  • Seal Material: Nitrile with Fabric Reinforcing
