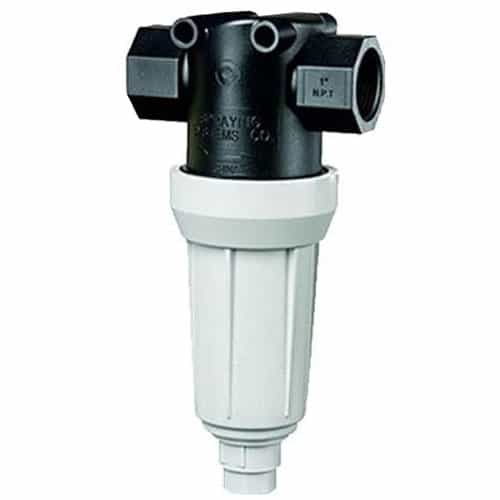

Spraying Systems AA126ML-4-200 Flush-Out Line Strainer - 1 Inch, 200 Mesh Screen, 35 GPM
Brand:
Mfr. Model #:
AA126ML-4-200
KR Part #:
STR3270
Weight:
0.87 lbs
(0)A Flush-Out Line Strainer. Equipped with a 200 mesh screen made with stainless steel. Body and head are made with chemically resistant polypropylene.
Prop 65
Technical Specifications
Max PSI: 200
Inlet Port: 1 inch
Product Description
200 Mesh Strainer
The Spraying Systems Teejet AA126ML-4-200 Flush-Out Line Strainer is features a stainless-steel 200 mesh screen. Both the body and head are constructed with polypropylene that provides a strong resistance to chemicals. Strainer is designed with 1-inch ports. Removable cap and O-ring enables flush-out and self-cleaning functionality. Handles a maximum pressure of 200 PSI and flow rate of 35 GPM.Specifications:
- Pipe/Flange Connection (F): 1 Inch
- Flow Rate With 5 PSI (0.34 bar) Pressure Drop: 35 GPM
- Screen: CP16903-7-SSPP
- Mesh Size: 200
- Maximum Pressure: 200 PSI
- Mesh Material: Stainless Steel
- Head Material: Polypropylene
- Bowl Material: Polypropylene
- Gasket Material: EPDM
- 200 PSI (14 bar) maximum pressure rating.
- Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
- Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
- Removable cap and O-ring for flush-out or self-cleaning operations.
- Integral mounting provision allows the strainer to be attached to machine using M8 or 5/16 diameter bolts.
- Uses same screen as the AA124A line strainer
