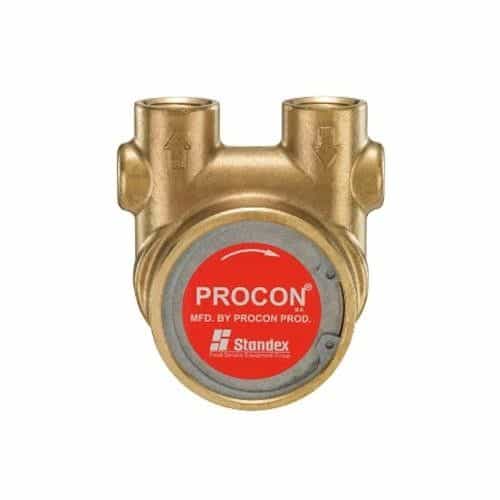

Procon 104A140F11BB Series 4 Low Pulsation Brass Pump - 140 GPH, 150 PSI, 1725 RPM
Brand:
Mfr. Model #:
104A140F11BB
KR Part #:
PPCO2503X
Weight:
3.31 lbs
(0)Brass body rotary vane pump with a positive displacement design. This brass pump has clamp-on mounting, nitrile seals, and 1/2" inlet and outlet ports. Performance details include a 140 GPH flow rate and a 150 PSI maximum pressure.
Prop 65
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 140
Max PSI: 150
Product Description
Rotary Vane Positive Displacement Series 4 Pump
The Procon 104A140F11BB Pump is a brass rotary vane pump from the Procon 4 Series. This positive displacement model pump is designed to operate virtually maintenance-free. It has 1/2" NPT inlet and discharge ports, a maximum flow rate of 140 GPH, and a pressure range from 100 to 150 PSI.
This Series 4 rotary vane pump has low-vibration operation and self-priming capabilities. It is ideal for reverse osmosis and boosting applications. Features bolt-on style mounting.
Dimensions: 4.1" x 3.88" x 4.48"
Specifications:
- Rotary vane, positive displacement design
- Non-food grade (1.5% maximum lead) - no agency approval
- Clamp-on mounting with .188 double flat drive
- 140 GPH
- 100 to 150 PSI pressure range - 130 PSI default relief valve spring setting
- FDA grade nitrile elastomer seals
- Plastic hi-temp solid valve type
- Clockwise rotation
- Standard clearances
- 1725 RPM nominal speed
- 6' maximum lift self priming
- Inlet: 1/2" NPT
- Outlet: 1/2" NPT
Features:
- Self priming
- Maintenance free
- Low vibration and pulsation characteristics
Applications:
- Circulation
- Reverse osmosis
- Booster
- Solar applications
- Hydraulic systems
- Desalination
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
