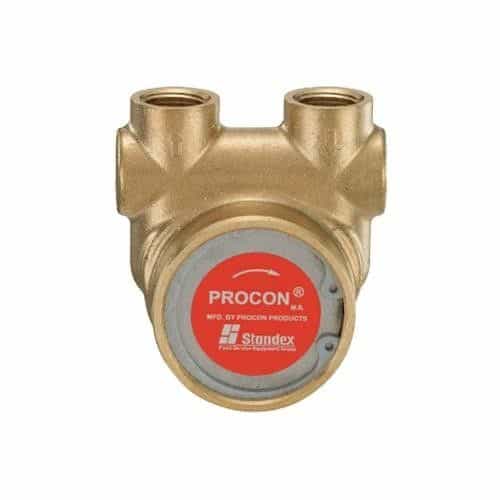

Procon 102A100R11BA Series 2 Brass RO and Transfer Pump - 100 GPH, 250 PSI, 3/8 NPT
Brand:
Mfr. Model #:
102A100R11BA
KR Part #:
PPCO1504VX
Weight:
2.50 lbs
(0)Brass body rotary vane pump with positive displacement operation. This brass pump has clamp-on mounting, fluorocarbon seals, and 3/8" inlet and outlet ports. Performance details include a 100 GPH flow rate and a 250 PSI maximum pressure rating.
Prop 65
Technical Specifications
Inlet Port: 3/8 inch
Max PSI: 250
Max GPM: 1.67
Product Description
Reverse Osmosis Brass Pump
The Procon 102A100R11BA Rotary Vane Pump is a brass positive displacement pump from the Procon Series 2 line of pumps. This rotary vane pump has low-vibration operation and self-priming capability. It is ideal for water transfer, boosting, and reverse osmosis applications. This brass pump has a 100 GPH flow rate, a max pressure of 250 PSI, and clamp-on mounting. Meets NSF standards; usable for potable water.
Procon Series 2 pumps have the same features as Series 1, only without the integral strainer.
Specifications:
- Brass construction
- Rotary vane, positive displacement design
- 3/8" inlet and outlet ports
- 100 GPH flow rate
- 1725 RPM nominal speed
- 151 to 250 PSI pressure range - 170 PSI default setting
- Clamp-on mount with .188" double flat drive
- Fluorocarbon type 21 elastomer seals
- Plastic hi-temp solid valve type
- Standard clearances
- Clockwise rotation
- Non-food grade (1.5% maximum lead) - no agency approval
- Weight: 2.5 lbs.
Features:
- Self Priming
- Maintenance Free
- Low Vibration and Pulsation Characteristics
Applications:
- Water circulation
- Reverse osmosis
- Booster
- Solar applications
- Hydraulic systems
- Desalination
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
