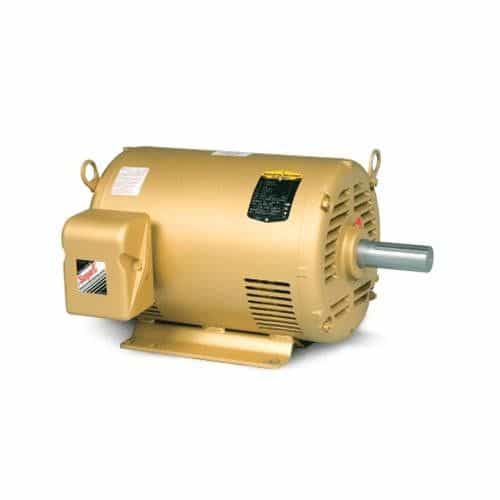

Baldor 15HP Electric Motor

The Baldor EM3314T is a tough, industrial-grade electric motor with an output of 15 horsepower and 3490 RPM. It's ideal for applications like car washes and manufacturing facilities where the motor is operating continuously or frequently. Designed to conserve energy over extended time periods of use. This 230/460 volt AC motor has an OPSB enclosure and a steel 215T frame.

Specifications

• Maximum Horsepower: 15
• Enclosure: OPSB
• Frame: Iron 215T
• Voltage: 230/460AC
• Frequency: 60 Hz
• Phase: 3
• Duty Rating: Continuous
• Speed: 3490 RPM
• Overall Length: 16.32"
• Motor Standards: NEMA
• High Voltage Full Load Amps: 17.5
• Motor Type:  3734M
• Mounting Arrangement: F1
• Shaft Diameter: 1.375"
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No shaft grounding
• Shaft Rotation: Reversible
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Service Factor: 1.15
• Number of Poles: 2
• Power Factor: 89
• Starting Method: Direct on line
• Synchronous Speed @ Frequency: 3600 RPM @ 60 Hz
• Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
• Certifications: UR, CSA EEV, CSA
• Ambient Temperature: 104° Fahrenheit
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Current @ Voltage: 17.500 A @ 460.0 V, 35.000 A @ 230.0 V
• Design Code: B
• Efficiency at 100% Load: 90.2%
• Front Face Code: Standard
• Insulation Class: F
• Inverter Code: Inverter ready
• KVA Code: G
• Lifting Lugs: Standard
• Locked Bearing Indicator: No Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying leads
• Motor Lead Quantity/Wire Size: 9 @ 12 AWG

UPC

• 781568104828
