Continuous-Duty General Purpose Motor

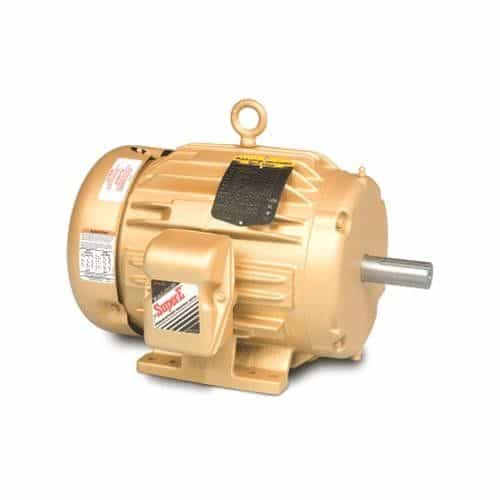

The Baldor EM2333T is a tough, industrial-grade electric motor for applications where the motor is operating continuously or frequently. Designed to conserve energy over extended time periods of use. This 230/460 volt AC motor has an TEFC enclosure and a steel 254T frame. Produces up to 15 horsepower and a maximum speed of 1765 RPM.

Specifications:

• Maximum Horsepower: 15
• Enclosure: TEFC
• Frame: Iron 254T
• Voltage: 230/460AC
• Frequency: 60 Hz
• Phase: 3
• Duty Rating: Continuous
• Speed: 1765 RPM
• Overall Length: 23.28"
• Motor Standards: NEMA
• High Voltage Full Load Amps: 18.1
• Motor Type:  0944M
• Mounting Arrangement: F1
• Shaft Diameter: 1.625"
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No shaft grounding
• Shaft Rotation: Reversible
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Pulley Shaft Indicator: Standard
• Service Factor: 1.15
• Number of Poles: 4
• Power Factor: 83
• Starting Method: Direct on line
• Synchronous Speed @ Frequency: 1800 RPM @ 60 Hz
• Voltage @ Frequency: 460.0 V @ 60 HZ, 230.0 V @ 60 HZ
• Certifications: UR, CSA EEV, CSA
• Ambient Temperature: 104° Fahrenheit
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Current @ Voltage: 18.100 A @ 460.0 V, 36.200 A @ 230.0 V, 38.000 A @ 208.0 V
• Design Code: A
• Efficiency at 100% Load: 92.4%
• Front Face Code: Standard
• Insulation Class: F
• Inverter Code: Inverter ready
• KVA Code: H
• Lifting Lugs: Standard
• Locked Bearing Indicator: Locked Bearing
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying leads
• Motor Lead Quantity/Wire Size: 9 @ 12 AWG

UPC:

• 781568102985
