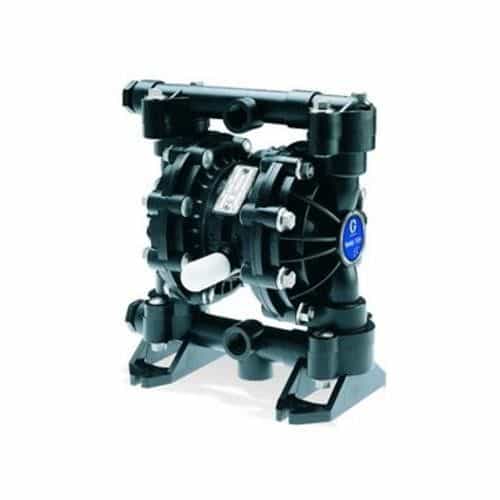

15 GPM - Industrial Pneumatic Double Diaphragm Pump

The Husky 515 is an industrial grade air-operated double diaphragm pump with a PTFE/EPDM diaphragm that is great for handling appications involving antifreeze, detergents, resin, polymers, motor oil, grease & oil, hydraulic fluid, transmission fluid, cutting oil, water, wastewater treatment, and ink. The air valve is engineered to deliver stall-free, low pulsation operation for smooth and rapid changeover. Designed to run quietly as it generates noise levels below 85 decibels.

Features:

• No mechanical seals to cause fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
• Split manifold option to pump multiple fluids without mixing
• Delivery up to 15 gpm (56.7 lpm)
• Reliable air valve for years of dependable performance

Husky 515 Specifications:

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Application: Industrial
• Ball Material: 316 Stainless Steel
• Center Section Material: Polypropylene
• Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
• Connection Type: Threaded
• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE/EPDM 2-Piece
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Polypropylene
• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene
• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100
• Maximum Cycle Rate (CPM): 400
• Maximum Flow Rate (GPM): 15
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Operating Temperature (°F): 150
• Maximum Solid Size (in): 0.09375
• Minimum Operating Temperature (°F): 40
• Model: Husky
• Overall Height (in): 10.63
• Power Source: Air
• Seat Material: Stainless Steel
• Series: 515
• Part Number: D52331
• Standards Met: ATEX, CE
• Type: Pneumatic Diaphragm Pump
