General Pump TP2526J34UIL Plunger Pump with Gas Engine Flange, Unloader and Injector, 2.6 GPM, 2500 PSI, Left Shaft
Brand:
Mfr. Model #:
TP2526J34UIL
KR Part #:
GPTP2526J34UIL
Weight:
11.50 lbs
GTIN:
682491119388

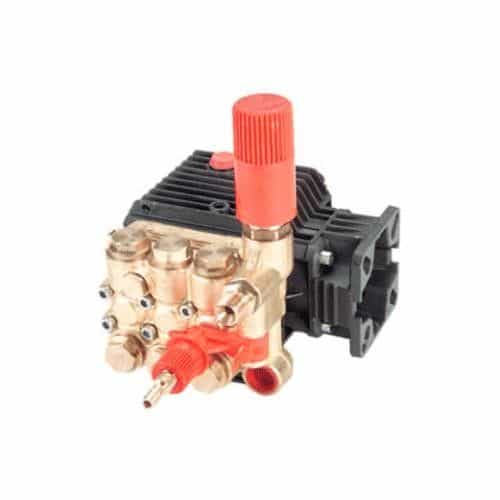

(0)Compact design plunger pump for high-pressure cleaning applications. Features SAE J609 flange for direct coupling to a gasoline engine. Includes a built-in unloader for pressure regulation. Note: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11 ounce
Shaft Diameter: 3/4 inch
RPM: 3400
Max Temperature: 165 degrees F
Max PSI: 2500
Max GPM: 2.6
Product Description
Gas Engine Flanged Plunger Pump
The General Pump TP2526J24UIL Pump is part of the TP Series 51 line of plunger pumps. This general cleaning pump comes with a flange for gasoline engines (SAE J609), a built-in unloader, and an in-line injector. Use in applications requiring a pump with a 2.6 GPM maximum flow rate and maximum pressure of 2500 PSI. Features left-hand shaft for adaptation into unique spaces.Specifications:
- Maximum Volume: 2.6 GPM
- Maximum Pressure: 2500 PSI
- Maximum RPM: 3400 RPM
- Inlet Port: 3/8"-19 BSP-F
- Discharge Port: 1/4"-19 BSP-F
- 11.0 ounce crankcase capacity
- Bore: 15mm
- Stroke: 6.6mm
- 125 PSI maximum inlet pressure
- 3/4" hollow shaft
- Flooded maximum inlet vacuum
- SAE J609 flanged for direct coupling to gas engines
- Built-in TP unloader
- Fixed downstream injector
- Fully anodized crankcase
- Oversized bearings
- Sight glass for easier monitoring
- Larger machined crankshaft - increases load potential and reduces fatigue
- Strongest manifold on the market
- Improved low and high pressure seals
- Reinforced valve cap area
- Positive aligning valve cap
- Support ridges and support ribs for piston guides
- Use GP Series 100 oil for best performance
