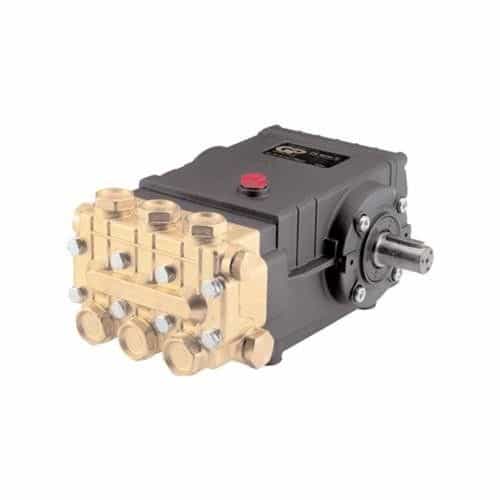

General Pump TS1811 Triplex Plunger Pump, 4.5GPM, 3500PSI, 1450RP

Brand:
Mfr. Model #:
TS1811
KR Part #:
GPTS1811
Weight:
33.20 lbs
GTIN:
682491113829
Availability:
2
Low Stock Warning
MSRP
$1,581.20
Now Only!
$539.92
starstarstarstarstar (0)

The General Pump T-47 Series is the preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, heavy-duty tapered roller bearings, and unitized SS inlet and discharge valves. Flow up to 4.5 GPM, at up to 3500 PSI.




Technical Specifications

Max GPM: 4.5
Max PSI: 3500
RPM: 1450
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Bore: 20 millimeter
Stroke: 14 millimeter
Shaft Diameter: 24 millimeter
Crankcase Capacity: 40.6 ounce

Product Description

General Pump TS1811 Pump

Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with continuously lubricated packings and over-sized connecting rods, for maximum life span. 24 mm solid shaft.


Dimensions: 12.2" X 9.2" X 6.9"

  • Triplex Plunger Pump.
  • Advanced forged brass manifold, increases working pressure to 3,500 PSI.
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Solid ceramic plunger
  • Unitized stainless steel inlet and discharge valves

Specifications:

  • Max Volume: 4.5 GPM
  • Max Discharge Pressure: 3500 PSI
  • Max Pump Speed: 1450 RPM
  • Max Temperature: 165°F
  • Inlet Port: 1/2"-14 BSP-F
  • Outlet Port: 3/8"-19 BSP-F
