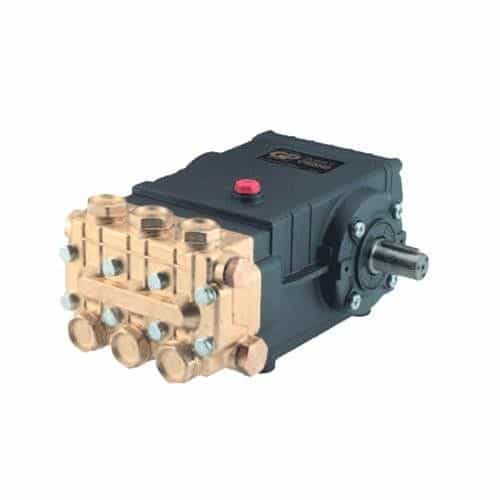

Pressure Cleaning Pump

Part of the Series 47 this is the preferred pump frame in the pressure cleaning industry. Forged brass manifold with solid ceramic plungers and continuously lubricated packings keep the pump functioning efficiently. High-capacity oil-bath crankcase is made with die-cast, anodized aluminum and has a capacity of 37.2 ounces of oil.

Specifications:

• GPM: 4.75
• PSI: 1800
• RPM: 1450
• Bore: .787 in./20 mm
• Stroke: .394 in./10 mm
• HP: 8.2 EBHP
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
• Plunger Bore: .866 in. / 22 mm
• Plunger Stroke: .472 in. / 12 mm
• Crankcase Oil Capacity: 33.8 oz
• Maximum Fluid Temperature: 165°F
• Inlet Port Thread: 1/2-14 BSPP-F
• Discharge Port Thread: 3/9-19 BSPP-F
• Shaft Diameter: .945 in. / 24 mm
• Weight: 30 lbs.
• Dimensions: 12.2" x 9.2" x 6.9"

Features:

• The preferred pressure cleaning industry pump frame
• Forged brass manifold includes exclusive lifetime warranty
• High-capacity, die-cast, anodized aluminum oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless-steel inlet and discharge valves
• Over-sized connecting rods
• Heavy-duty tapered roller bearing
