General Pump CW2004L Direct Drive Pump - 4.0 GPM, 2000 PSI, Left Side Shaft

Brand:
Mfr. Model #:
CW2004L
KR Part #:
GPCW2004L
Weight:
35.00 lbs
GTIN:
682491128274
Call For Availability
MSRP
$1,965.24
Now Only!
$671.06
starstarstarstarstar (0)

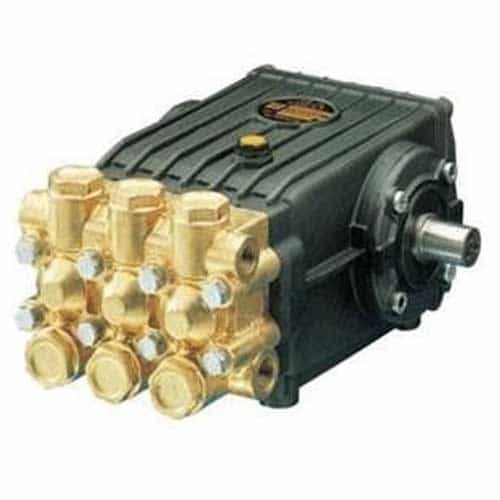

The CW2004 is the preferred pump frame in the car wash industry! Features forged brass manifold with lifetime warranty, solid ceramic plungers, and unitized stainless steel inlet and discharge valves. Note: picture shows right shaft, but this is a left hand pump.



Technical Specifications

Max GPM: 4
Max PSI: 2000
RPM: 1750
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Bore: 20 millimeter
Stroke: 10 millimeter
Shaft Diameter: 24 millimeter
Crankcase Capacity: 33.8 ounce

Product Description

2000 PSI Car Wash Pump

The CW2004 is the preferred pump frame in the car wash industry! This triplex plunger pump offers the perfect flow and pressure for self-service use. Features forged brass manifold with lifetime warranty, solid ceramic plungers, and unitized stainless steel inlet and discharge valves. 24 mm solid shaft.

Dimensions: 11.4" X 9.2" X 7.2"

  • Triplex Plunger Pump
  • Advanced forged brass manifold
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • Heavy-duty tapered roller bearing
  • Unitized stainless steel inlet and discharge valves
  • Left side shaft

Specifications:

  • Max Volume: 4.0 GPM
  • Max Discharge Pressure: 2000 PSI
  • Max Pump Speed: 1750 RPM
  • Max Temperature: 165°F
  • Inlet Port: 1/2"-14 BSP-F
  • Outlet Port: 3/8"-19 BSP-F
