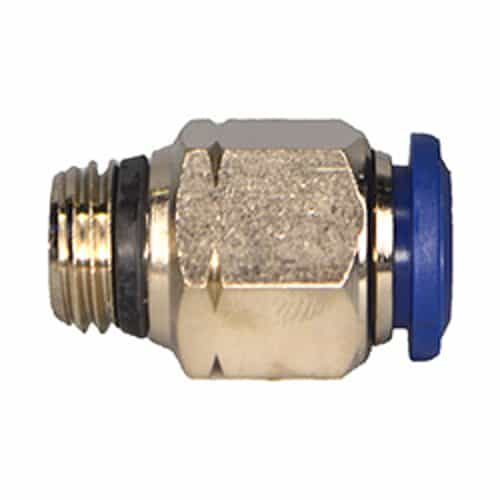

Nickel-Plated Straight Male Push-In Connector 3/8 Tube x 1/4 Global Thread
Brand:
Mfr. Model #:
20-058N
KR Part #:
AL6MC4
Weight:
0.05 lbs
(0)Nickel-plated brass push-in fitting, male global thread to unfinished tube for compressed air, water, and vacuum systems. Transition from 3/8" tube to 1/4" Male Global Thread. Stainless steel gripper collet for quick installation and reuse.
Prop 65
Technical Specifications
Max PSI: 290
Min Temperature: -4 degrees F
Max Temperature: 176 degrees F
Product Description
Push-In Fitting, 3/8" UNF x 1/4" M
Nickel-plated brass push-in fitting, male global thread to unfinished tube for compressed air, water, and vacuum systems. Transition from 3/8" tube to 1/4" Male Global Thread. Stainless steel gripper collet for quick installation and reuse. Global thread male fittings can be assembled with female threads produced to Tapered NPTF, Parallel (BSPP, BSP) and Tapered (BSPT, PT) standards. Use with nylon, polyethylene, or polyurethane tubing.
Specifications:
- Pressure Range: Vacuum to 290PSI
- Temperature Range: -4°F to 176°F
- Port 1: 3/8" UNF
- Port 2: 1/4" Male Global Thread
- Body: Nickel-plated Brass
- Length: 1.32"
- Hex: 0.67
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
