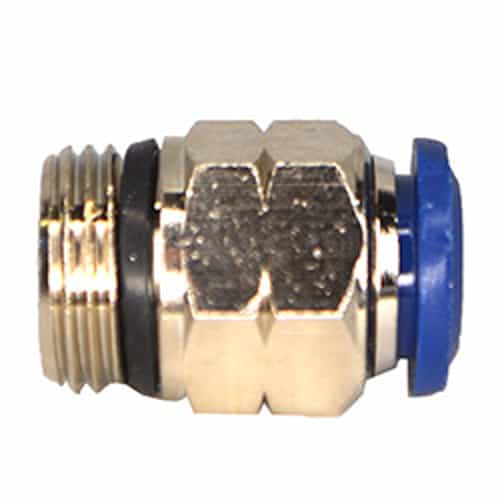

20-059N Nickel-Plated Straight Male Push-In Connector - 3/8in. Tube x 3/8in. Global Thread

Brand:
Mfr. Model #:
20-059N
KR Part #:
AL6MC6
Weight:
0.05 lbs
In Stock
MSRP
$12.17
Now Only!
$6.62
starstarstarstarstar (0)
Nickel-plated brass push-in fitting, male global thread to unfinished tube for compressed air, water, and vacuum systems. Transition from 3/8" tube to 3/8" Male Global Thread. Stainless steel gripper collet for quick installation and reuse.
Prep 65

Prop 65




Technical Specifications

Max PSI: 290
Min Temperature: -4 degrees F
Max Temperature: 176 degrees F

Product Description

Nickel Plated Brass Push-In Fitting, 3/8" UNF x 3/8" M

Nickel-plated brass push-in fitting, male global thread to unfinished tube for compressed air, water, and vacuum systems. Transition from 3/8" tube to 3/8" Male Global Thread. Stainless steel gripper collet for quick installation and reuse. Global thread male fittings can be assembled with female threads produced to Tapered NPTF, Parallel (BSPP, BSP) and Tapered (BSPT, PT) standards. Use with nylon, polyethylene, or polyurethane tubing.
Specifications:

  • Pressure Range: Vacuum to 290PSI
  • Temperature Range: -4°F to 176°F
  • Port 1: 3/8" UNF
  • Port 2: 3/8" Male Global Thread
  • Body: Nickel-plated Brass
  • Length: 1.32"
  • Hex: 0.71

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
