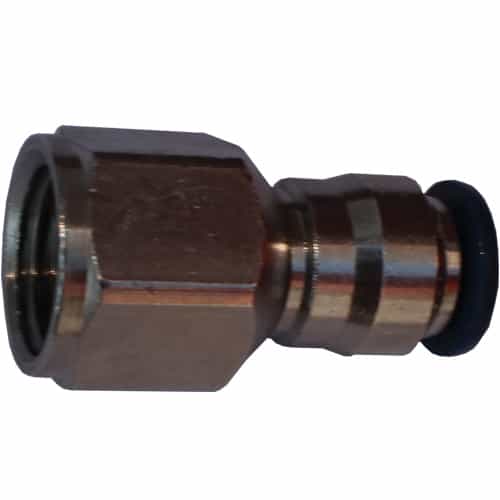

Nickel-Plated Straight Female Push-In Connector 1/4 Inch Tube X 1/4 Inch Global Thread
Brand:
Mfr. Model #:
20-035N
KR Part #:
AL4FC4
Weight:
0.03 lbs
(0)Nickel-plated brass push-in fitting, female global thread to unfinished tube for compressed air, water, and vacuum systems. Transition from 1/4" tube to 1/4" Female Global Thread. Stainless steel gripper collet for quick installation and reuse.
Prop 65
Technical Specifications
Max PSI: 290
Max Temperature: 176 degrees F
Min Temperature: -4 degrees F
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Product Description
Nickel Plated Brass Push-In Fitting
Nickel-plated brass push-in fitting, female global thread to unfinished tube for compressed air, water, and vacuum systems. Transition from 1/4" tube to 1/4" Female Global Thread. Stainless steel gripper collet for quick installation and reuse. Global thread female fittings can be assembled with male threads produced to Tapered NPTF, Parallel (BSPP, BSP) and Tapered (BSPT, PT) standards. Use with nylon, polyethylene, or polyurethane tubing.Specifications:
- Pressure Range: Vacuum to 290PSI
- Temperature Range: -4°F to 176°F
- Port 1: 1/4" UNF
- Port 2: 1/4" Female Global Thread
- Body: Nickel-plated Brass
- Length: 1.38"
- Hex: 0.71
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
