General Pump CW1012L CW Series 69 Triplex Plunger Pump 30 mm bore left shaft
Brand:
Mfr. Model #:
CW1012L
KR Part #:
GPCW1012L
Weight:
45.00 lbs
GTIN:
682491025511
(0)CW Series 69 Triplex Plunger Pump features a left-handed 30mm bore with maximum volume 12.0 GPM and pressure of 1000 PSI. Pump's maximum speed is 900 RPM. Preferred pump frame used in the two-gun prep conveyor and tunnel car wash industry.

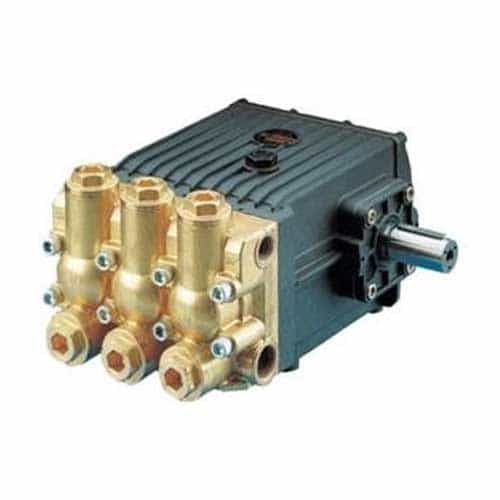

Note: Pump is a left-handed "L" version (the picture shows right shaft, but this is a left hand pump.)
Note: Pump is a left-handed "L" version (the picture shows right shaft, but this is a left hand pump.)
Prop 65
Technical Specifications
Bore: 30 millimeter
Crankcase Capacity: 50.7 ounce
Inlet Port: 3/4 inch
Max GPM: 12
Max PSI: 1000
Max Temperature: 165 degrees F
RPM: 900
Shaft Diameter: 35 millimeter
Stroke: 24 millimeter
Outlet Port: 3/8 inch
Product Description
CW Series 69 Triplex Plunger Pump
Pump is engineered with a triplex design with a 30 mm left bore shaft and a forged brass manifold. Packings on the solid ceramic plungers are continuously lubricated. Over-sized connecting rods are used to extend the maximum life of the CW Series 69 Triplex Plunger Pump. This is the preferred pump frame used in the two-gun prep conveyor and tunnel car wash industry.Dimensions: 13.0" x 11.9" x 7.3"
Features:
- Forged brass manifold
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless-steel inlet and discharge valves
Specifications:
- Pump Model CW1012
- Maximum Volume 12.0 GPM
- Maximum Discharge Pressure 1000 PSI
- Maximum Pump Speed 900 RPM
- Maximum Inlet Vacuum 2 ft. water (1.8 in. Hg)
- Bore 1.18 in. / 30 mm
- Stroke .946 in. / 24 mm
- Crankcase Oil Capacity 50.7 oz.
- Maximum Fluid Temperature 1650 F
- Inlet Port Thread 3/4-14 BSPP-F
- Discharge Port Thread 3/8-19 BSPP-F
- Shaft Diameter 1.378 in. / 35 mm
- Weight 45 lbs.
