General Pump CW3040 Car Wash CW47 Series Triplex Plunger Pump - 5 GPM, 3000 PSI
Brand:
Mfr. Model #:
CW3040
KR Part #:
GPCW3040R
Weight:
33.20 lbs
GTIN:
682491025559
(0)Triple plunger pump for car wash applications up to 3000 PSI and 5 GPM flow rate. Forged brass manifold, anodized aluminum large crankcase, solid ceramic plungers, and stainless steel ports. 1/2" inlet port, 3/8" outlet port.
Prop 65
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 40.6 ounce
Inlet Port: 1/2 inch
Max GPM: 5
Max PSI: 3000
Max Temperature: 165 degrees F
RPM: 1250
Shaft Diameter: 24 millimeter
Stroke: 16 millimeter
Product Description
Right Shaft Car Wash Pump

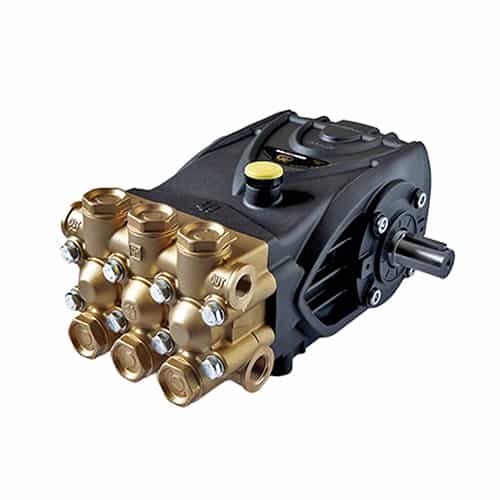

The General Pump CW3040 Plunger Pump has a large-capacity aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A preferred pump frame in the pressure cleaning industry, this pump is excellent for commercial car wash applications.
Dimensions: 12.2" x 9.2" x 7.2"
Specifications:
- 5 GPM flow rate
- 3000 PSI maximum discharge pressure
- 1/2" BSP-F inlet port thread
- 3/8" BSP-F discharge port thread
- 1250 RPM maximum pump speed
- 125 PSI maximum inlet pressure
- 9' water maximum inlet vacuum
- 20 mm bore
- 16 mm stroke
- 24 mm solid shaft - right mount
- 40.6 ounce crankcase oil capacity
- 165 deg Fahrenheit maximum fluid temperature
- Weight: 33.20 lbs.
Features:
- Forged brass manifold
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Oversized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
- Available in a left-hand shaft version (part #CW3040L)
