General Pump YVB4021HT Pressure Trapping Unloader, 21 GPM, 4050 PSI
Brand:
Mfr. Model #:
YVB4021HT
KR Part #:
GPU4021B
Weight:
2.42 lbs
GTIN:
682491104179
Availability:
4
Manuals
(1)High temperature brass unloader for EZ Series pumps. 4050 PSI rated pressure, 4500 PSI maximum pressure. Great for use in multiple gun situations.
Technical Specifications
Max GPM: 21
Max PSI: 4500
Min PSI: 400
Max Temperature: 195 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
4500 PSI High Temp Unloader

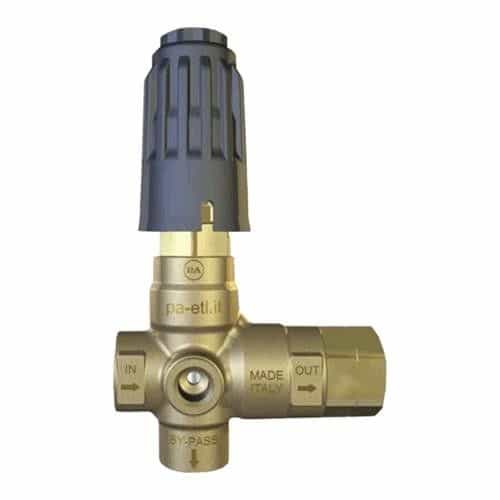

The General Pump YVB4021HT pressure unloading device is made with highly durable brass and stainless steel. This unloader has 1/2" inlets and a 1/2" outlet. It is rated for a maximum flow rate of 21 GPM and a maximum pressure rating of 4500 PSI, and includes high temp brass components for continual temperatures up to 185° F and short periods at 195° F. Maintain consistent pressure and protect yourself from dangerous spiking.
Dimensions: 6.5" x 4.0" x 1.7"
Specifications:
- Maximum Flow: 21 GPM
- Rated Pressure: 4050 PSI
- Maximum Pressure: 4500 PSI
- Inlet Port: 1/2" BSP-F
- Outlet Port: 1/2" BSP-F
- Max Temperature: 195°
Product Reviews
1
Customer Review(s)
5 Star
0
(0%)
4 Star
0
(0%)
3 Star
0
(0%)
2 Star
0
(0%)
1 Star
1
(100%)
Rating
Ordered to use for CAT pump 310 prep guns (2) from General Pump's recommendation. Leaked within a month. Called General Pump as it was still under warranty. Had to ship back at my expense for them to look at the unloader. Of course then I had to buy another while they had it for inspection. Second one leaked as well after a month. General Pump said they have never seen this model leak. Once they returned the original, that leaked as well. Plus I wanted a repair kit and they said that was not available. Now back to the tried and true cheaper model for my use, plus it has rebuild kits available.
Reviewed by Reviewed by Anonymous
9/8/2016 5:44:46 PM
