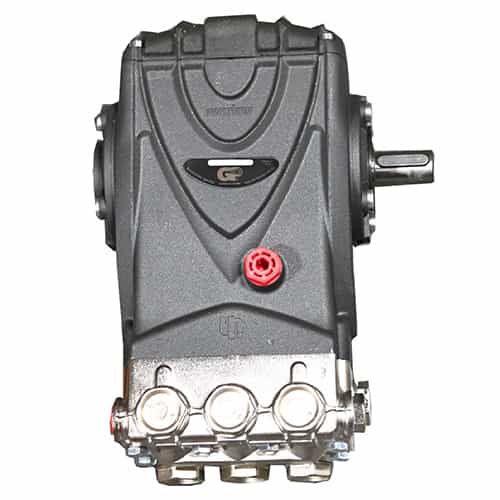

General Pump HTS2016S Emperor Series Pump - 5.6GPM, 3000 PSI
Brand:
Mfr. Model #:
HTS2016S
KR Part #:
GPHTS2016S
Weight:
32.00 lbs
GTIN:
682491120193
(1)Emperor Series pump model from the General Pump brand. 3000 PSI, 5.6 GPM. Boasts ceramic plungers and is ideal for high-pressure cleaning systems.
Prop 65
Technical Specifications
Bore: 40 millimeter
Crankcase Capacity: 40.6 ounce
Max GPM: 5.6
Max PSI: 3000
Stroke: 16 millimeter
Shaft Diameter: 24 millimeter
RPM: 1450
Max Temperature: 185 degrees F
Inlet Port: 1/2 inch
Product Description
3000 PSI Emperor Series Pump
The General Pump HTS2016S Emperor Series Pump has ceramic plungers and is ideal for use in car wash and other high pressure cleaning applications.
HTS2016S Specifications:- Pump Model HTS2016S
- Maximum Volume 5.6 GPM
- Maximum Pressure 3000 PSI
- Maximum RPM 1450 RPM
- Maximum Inlet Pressure 125 PSI
- Minimum Inlet Pressure 9 ft. water (7.9 in. Hg)
- Maximum Fluid Temperature 185oF
- Bore (in / mm) .787 in. / 20 mm
- Stroke (in / mm) .630 in. / 16 mm
- Oil Capacity 40.6 oz.
- Inlet Port Thread 1/2"-14 BSP-F
- Discharge Port Thread 3/8"-19 BSP-F
- Shaft Diameter .945 in. / 24 mm
- Weight 32 lbs.
- Dimensions - Nominal 12.4" x 10.0" x 6.9"
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
