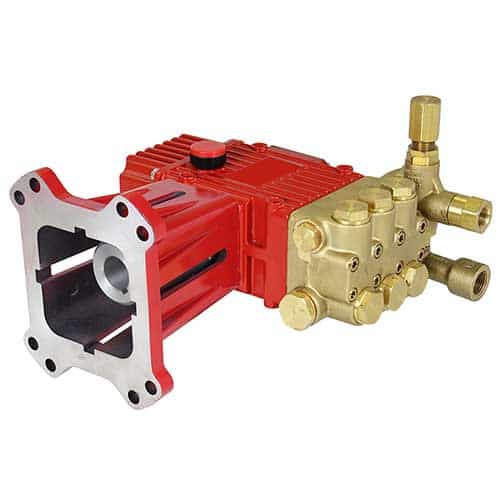

Giant P322LG2EU Triplex Plunger Pump w/Flange, Coupler, and Unloader - 4.7 GPM, 3000 PSI, 1750 RPM, Left Shaft

Brand:
Mfr. Model #:
P322LG2EU
KR Part #:
PUP322LG2EU
Weight:
16.00 lbs
Call For Availability
MSRP
$1,221.99
Now Only!
$573.28
starstarstarstarstar (0)
Left-shaft aluminum crankcase triplex plunger positive displacement pump with ceramic plungers. Ready to go out of the box, with gas flange, coupler, and unloader already integrated.



Technical Specifications

Max GPM: 4
Max PSI: 3500
RPM: 1450
Stroke: 14.1 millimeter
Max Temperature: 160 degrees F
Bore: 18 millimeter
Shaft Diameter: 24 millimeter
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch

Product Description

Triplex Pump with Flange, Coupler, Unloader

This Giant Pumps P322LG2EU plunger pump has a left-side mounted shaft. This high-quality positive displacement plunger pump has a maximum flow rate of 4.7 GPM at 1750 RPM, or 4.0 GPM at 1450 RPM. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops. Includes gas flange, coupler, and unloader as part of the package.

Specifications:

@1450 RPM

  • Flow: 4.0 GPM
  • Pressure: 3500 PSI

@1750 RPM

  • Flow: 4.7 GPM
  • Pressure: 3000 PSI

Common Specs:

  • Maximum Inlet Pressure: 145 PSI
  • Maximum Temperature: 160 °F
  • Plunger Diameter: 0.71" (18 mm)
  • Stroke: 0.56" (14.1 mm)
  • Crankshaft Diameter: 0.98" (24 mm)
  • Crankshaft Rotation: Top of pulley towards manifold
  • Crankshaft Mounting: Left
  • Inlet Ports: (2) 1/2" BSP
  • Discharge Ports: (2) 3/8" BSP
  • Crankcase Oil Capacity: 14.2 fluid ounces
  • Extended Crankcase Oil Capacity: 17.0 fluid ounces
  • Weight: 16 lbs.

Key Component Material:

  • Manifold: Special brass
  • Plungers: Solid ceramic oxide
  • Valves: High grade stainless steel
  • Seals: Nitrile with fabric reinforcing
  • Gear End: Aluminum
