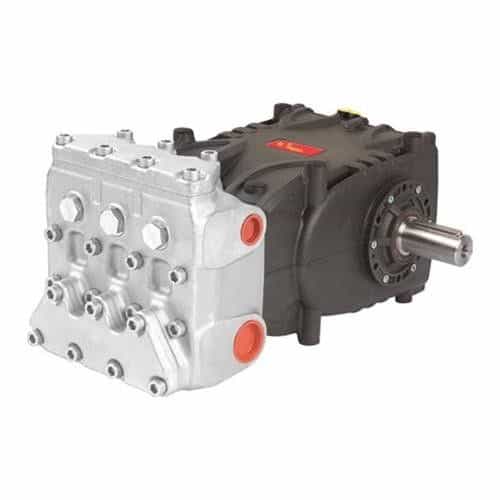

General Pump HTCK4050S Red Label Emperor Series High-Temperature Plunger Pump - 45 GPM, 1500 PSI

Brand:
Mfr. Model #:
HTCK4050S
KR Part #:
GPHTCK4050S
Weight:
157.00 lbs
GTIN:
682491026129
Out of Stock - Pre-Order Now
IN STOCK ALTERNATIVE
General Pump PHTCK4050S Nickel-Plated Forged Brass Blue Label Plunger Pump - 45 GPM, 1500 PSI, Right Shaft
SKU: GPPHTCK4050S
Click to View
MSRP
$14,634.62
Now Only!
$3,731.77
starstarstarstarstar (0)

The General Pump HTCK4050S Red Label Emperor Pump is a hot water pump for specialty applications up to 185° Fahrenheit. In addition to high temperatures, this pump is also designed to handle rigorous duty cycles and harsh chemicals. It boasts ceramic plungers, a nickel plated forged brass manifold, and heavy duty tapered roller bearings. 1500 PSI maximum pressure, 45 GPM maximum volume, 1 1/2" FNPT inlet x 1" FNPT outlet.

Freight Only

Freight Only




Technical Specifications

Bore: 40 millimeter
Crankcase Capacity: 124.4 oz.
Inlet Port: 1 1/2 inch
Max PSI: 1500
Max Temperature: 185 degrees F
RPM: 900
Max GPM: 45

Product Description

1500 PSI High-Temperature Emperor Series Pump

The General Pump HTCK4050S Red Label Emperor Series Pump is a hot water pump for specialty applications that require preheated water, such as food and beverage, pharmaceutical, power washing, and special high-temperature car washes. From the respected Emperor Series, this plunger pump can handle up to 185° Fahrenheit, rigorous duty cycles, and harsh chemicals. It boasts ceramic plungers, a nickel plated forged brass manifold, and heavy duty tapered roller bearings. On the performance side, it can generate up to 1500 PSI maximum pressure and 45 GPM maximum flow rate.

If you have a regular car wash that doesn't use unusually hot water, the General Pump PHTCK4050S is recommended.

HTCK4050S Specifications:

  • Maximum Pressure: 1500 PSI
  • Maximum Volume: 45 GPM
  • Maximum Speed: 900 RPM
  • Maximum Horsepower: 46.2 HP
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Fluid Temperature: 185° Fahrenheit
  • Bore: 40mm (1.6")
  • Stroke: 50mm (1.9")
  • Inlet: 1 1/2"-11 FNPT
  • Discharge: 1"-11 FNPT
  • Oil Capacity: 124.4 ounces - General Pump 220 Series Oil recommended
  • Shaft Diameter: 40mm (1.9")
  • Dimensions: 20.7" x 14.5" x 9.9"

Features:

  • Patent-pending "high tech" packings: dynamic low-pressure seal retainer, superior low-pressure seal, innovative immediate ring, superior high-pressure seal
  • Ceramic plungers
  • Nickel plated forged brass manifold
  • Heavy duty tapered roller bearings
  • Specifically designed to handle rigorous duty cycles, high temps, and chemicals
  • Patent-pending inlet/outlet valve cage
  • Can replace CAT 3535
  • Ideal for specialty applications that require preheated water - food/beverage, pharmaceutical, power washing, and special high-temperature car washes
  • Left shaft version available (HTCK4050SL)
