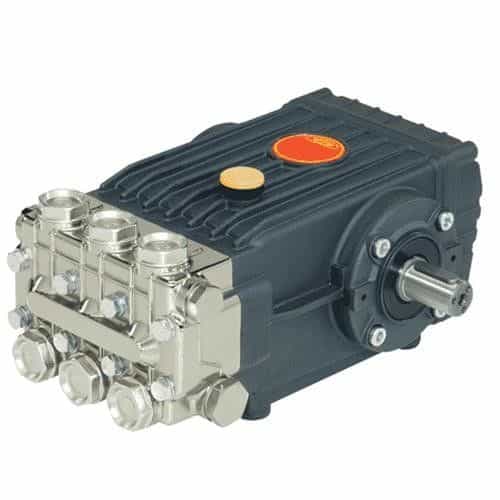

General Pump HTS2016SL Emperor HTS Series Left Shaft Triplex Plunger Pump - 5.6 GPM, 3000 PSI, 1450 RPM

Brand:
Mfr. Model #:
HTS2016SL
KR Part #:
GPHTS2016SL
Weight:
32.00 lbs
Call For Availability
MSRP
$2,430.06
Now Only!
$764.21
starstarstarstarstar (0)
Takes the harsh pressure of 3000 PSI. Great for car wash and high-pressure cleaning applications. Endures rigorous duty cycles, high temperatures and harsh chemicals.



Technical Specifications

Bore: 40 millimeter
Crankcase Capacity: 40.6 ounce
Shaft Diameter: 24 millimeter
Stroke: 16 millimeter
RPM: 1450
Max Temperature: 185 degrees F
Max PSI: 3000
Max GPM: 5.6
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Max PSI: 125

Product Description

HTS Series Emperor Pump - Left Shaft

The Triplex design makes this pump ideal for rigorous duty cycles, car washes and high-pressure cleaning applications. It can withstand high pressures up to 3000 PSI and pumps 5.6 gallons per minute. Both the inlet and outlet valve plugs are nickel-plated. The nickel-plated forged brass manifold is engineered to endure high temperatures and harsh chemicals. Note: Left-handed shaft.
Dimensions - Nominal:  12.4" x 10.0" x 6.9"

Specifications:

  • Pump Model: HTS2016S
  • Maximum Volume: 5.6 GPM
  • Maximum Pressure: 3000 PSI
  • Maximum RPM: 1450 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Minimum Inlet Pressure: 9 ft. water
  • Maximum Fluid Temperature: 185°F
  • Bore: .787 in.
  • Stroke: .630 in.
  • Oil Capacity: 40.6 oz.
  • Inlet Port Thread: 1/2"
  • Discharge Port Thread: 3/8"
  • Shaft Diameter: .945 in.
  • Weight 32 lbs.

Features:

  • Features patent-pending "high tech" packings with dynamic low-pressure seal retainers, superior low-pressure seals, innovative intermediate rings, and superior high-pressure seal
  • Ceramic plungers
  • Patent-pending inlet/outlet valve cage
  • Nickel-plated forged brass manifold
  • Heavy-duty tapered roller bearings
