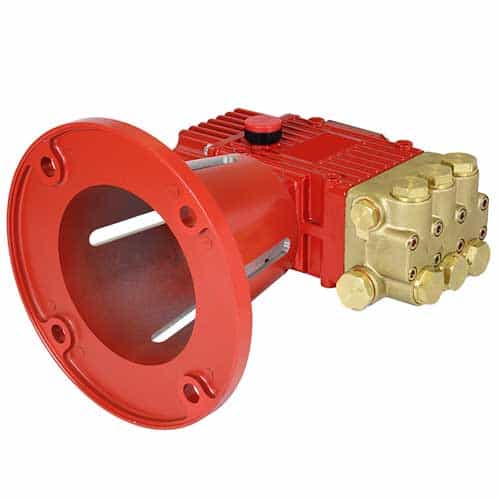

Giant Pumps P316LE2 Triplex Plunger Pump, 4.7 GPM, 3045 PSI, Left Shaft, 184 TC Flange

Brand:
Mfr. Model #:
P316LE2
KR Part #:
PUP316LE2
Weight:
18.00 lbs
Call For Availability
MSRP
$998.40
Now Only!
$468.38
starstarstarstarstar (0)
Used in a variety of applications, these hard working pumps help get the job done. Features 184 TC electric motor flange for pump drive. Up to 4.7 GPM max flow, at pressures up to 3045 PSI.



Product Description

Left Mounted Plunger Pump

This Giant P316LE2 plunger pump has a left-side mounted shaft and a 184 TC electric motor flange featuring 7.25" bolts. This high-quality positive displacement plunger pump has a maximum flow rate of 4.7 GPM at 1750 RPM. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:

@1450 RPM

  • Flow: 4.0 GPM
  • Nominal Pressure: 3045 PSI
  • Power Required (Nominal): 8.4 HP
  • Intermittent Power: 3350 PSI
  • Power Required (Intermittent): 9.2 HP

@1750 RPM

  • Flow: 4.7 GPM
  • Nominal Pressure: 2500 PSI
  • Power Required (Nominal): 8.1 HP
  • Intermittent Power: 2750 PSI
  • Power Required (Intermittent): 8.9 HP

Common

  • Maximum Inlet Pressure: 145 PSI
  • Maximum Temperature: 160 °F
  • Plunger Diameter: 18 mm
  • Stroke: 14.1 mm
  • Crankshaft Diameter: 24 mm
  • Crankshaft Rotation: Top of pulley towards manifold
  • Crankshaft Mounting: Left
  • Inlet Ports: (2) 1/2" BSP
  • Discharge Ports: (2) 3/8" BSP
  • Crankcase Oil Capacity: 14.2 fluid ounces
  • Extended Crankcase Oil Capacity: 17.0 fluid ounces
  • Weight: 16 lbs.

Key Component Material:

  • Manifold: Special brass
  • Plungers: Solid ceramic oxide
  • Valves: High grade stainless steel
  • Seals: Nitrile with fabric reinforcing
  • Gear End: Aluminum
