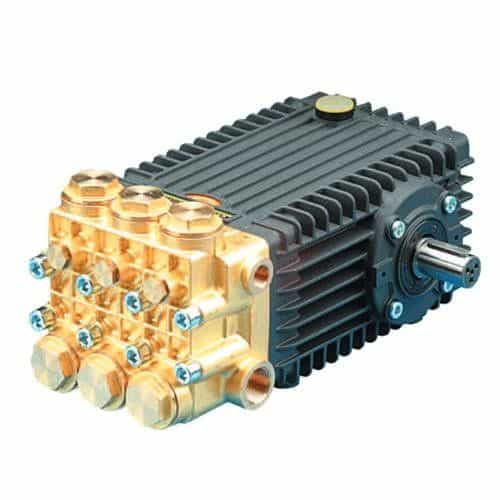

General Pump TSF2019 High Flow Triplex Pump, 7.6 GPM, 4000 PSI, Right Shaft

Brand:
Mfr. Model #:
TSF2019
KR Part #:
GPTSF2019
Weight:
40.70 lbs
GTIN:
682491114703
Availability:
1
Low Stock Warning
MSRP
$2,478.45
Now Only!
$846.31
starstarstarstarstar (1)
The preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings. Up to 7.6 GPM at pressures up to 4000 PSI.



Technical Specifications

Bore: 20 millimeter
Crankcase Capacity: 40.6
Horsepower: 20.8
Inlet Port: 3/4 inch
Max GPM: 7.6
Max PSI: 4000
Max Temperature: 165 degrees F
RPM: 1750
Shaft Diameter: 24 millimeter
Stroke: 19 millimeter

Product Description

General Pump TSF 66 Series Pump with Right Shaft

The General Pump TSF2019 features one of the leading pump frames in the pressure cleaning industry. A large-capacity fully anodized crankcase and new plunger design with improved thermal shock resistance provide for durability and reliability. Produces consistent high flow at mid-range pressures.

Dimensions: 14.94" x 9.78" x 6.99"

Features

  • New valve cap for improved hydrostatic performance
  • Oversized roller bearings
  • Innovative new seal design for extended seal life
  • Right side crankshaft

Specifications

  • Maximum Flow: 7.6 GPM
  • Maximum Pressure: 4000 PSI
  • RPM: 1750 RPM
  • Max Temperature: 165° F
  • Inlet Port: 3/4"-14 BSP-F
  • Discharge Port: 3/8"-19 BSP-F

Product Reviews

1  Customer Review(s)
5 Star
1  (100%)
4 Star
0  (0%)
3 Star
0  (0%)
2 Star
0  (0%)
1 Star
0  (0%)

CID: -1 QueryString:general-pump-tsf2019-high-flow-triplex-pump-7-6-gpm-4000-psi-right-shaft| Runtime:falsep-37577.aspx/p-37577.aspxen-US2https://www.highpressurepumpsandparts.com/3/15/2025searchEngineName=general-pump-tsf2019-high-flow-triplex-pump-7-6-gpm-4000-psi-right-shaftcompunix.productreviews.xml.config102036516949TrueUSDTrue18.118.86.470TrueFalse8:31 PM1FalseUSDTrueen-USFalse0en-US375771FalseFalseproduct| LastCustomerReview:
Ratingstarstarstarstarstar
My dream pump. Who could ask for anything more!
Reviewed by Kevin  B
3/18/2021 9:37:18 PM
