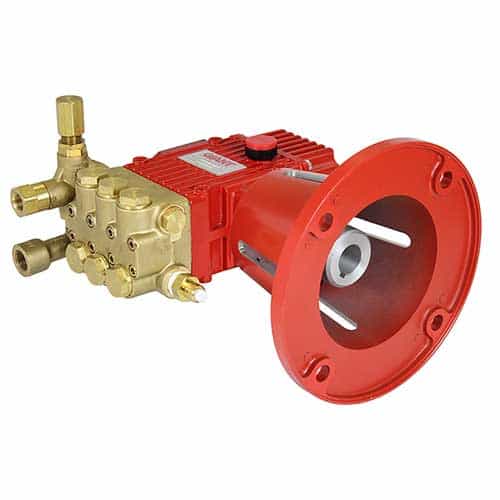

Giant P220RE2HUT Triplex Plunger Pump, 4.7 GPM, 2500 PSI, Flange Mount with Coupler, Unloader, Thermal Relief
Brand:
Mfr. Model #:
P220RE2HUT
KR Part #:
PUP220RE2HUT
Weight:
15.00 lbs
(0)This triplex ceramic plunger pump from the Giant Pump 220E Series features solid ceramic plungers and stainless steel valves for durability. NEMA 56C electric motor flange for direct drive, 1 3/8" aluminum coupler. Integral unloader and thermal relief valve.
Technical Specifications
Crankcase Capacity: 9 ounce
Stroke: 14.1 millimeter
Shaft Diameter: 24 millimeter
Max Temperature: 160 degrees F
Max PSI: 2500
Max GPM: 4.7
Max GPM: 4.7
Inlet Port: 1/2 inch
Product Description
2500 PSI Right Mounted Plunger Pump
The Giant P220RE2HUT high-pressure pump has a right-side mounted shaft and 18 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 4.7 GPM, a maximum pressure of 2500 PSI, and a 1750 RPM crankshaft speed. Features NEMA 56C flange for electric motor direct drive, 1 3/8" aluminum coupler, and unloader and thermal relief valve for pressure and temperature protection. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.
Specifications:
- Max GPM: 4.7 GPM
- Nominal/Intermittent pressure: 2000/2500 PSI
- Maximum temperature: 160° F
- Plunger diameter: 18 mm
- Stroke: 14.1 mm
- Crankshaft diameter: 24 mm
- Inlet ports: (2) 1/2" BSP
- Discharge ports: (2) 3/8" BSP
- Crankcase oil capacity: 7.5 fl. oz.
- Volumetric Efficiency @ 1750 RPM: 0.94
- Volumetric Efficiency @ 3450 RPM: 0.87
- Mechanical Efficiency @ 3450 RPM: 0.86
- Power required: 4.7/5.9 BHP
Key Component Material:
- Manifold: Special brass
- Plungers: Solid ceramic oxide
- Valves: High grade stainless steel
- Seals: Nitrile with fabric reinforcing
- Gear End: Aluminum
