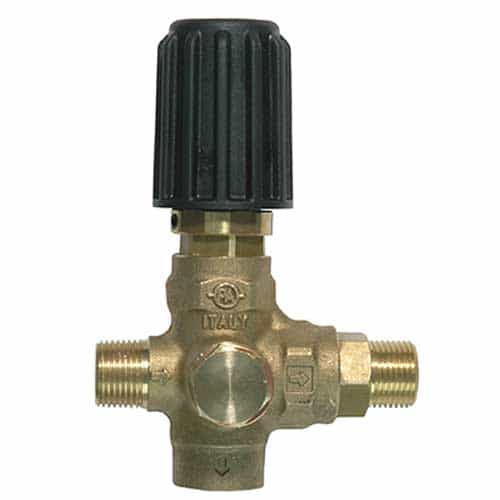

General Pump YVB3KA Adjustable Trapped Pressure Unloader - 3/8 Inch BSP M x M, 6.5 GPM, 3650 PSI

Brand:
Mfr. Model #:
YVB3KA
KR Part #:
GPU3KA
Weight:
1.00 lbs
GTIN:
682491142546
Call For Availability
MSRP
$132.83
Now Only!
$50.26
starstarstarstarstar (0)
A brass unloader used to protect pump systems from dangerous pressure levels. Handles a maximum flow rate of 6.5 GPM and pressure of 3650 PSI. Endures a maximum temperature of 195 F.



Technical Specifications

Max PSI: 3650
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 195 degrees F
Max GPM: 6.5

Product Description

3/8 Inch Unloader

General Pump YVB3KA is trapped pressure unloader to protect equipment from over pressure. Built with a brass body to withstand a maximum pressure of 3650 PSI and maximum flow rate of 6.5 GPM. This unloader is constructed with 3/8-inch BSP M x M inlet and outlet. Equipped with adjustable locknut to control the maximum pressure setting.

Specifications:

  •  GPM: 6.5
  • Rated PSI: 3200
  • Max PSI: 3650
  • Inlet: 3/8" BSP-M
  • Outlet: 3/8" BSP-M
  • Bypass: 3/8" BSP-F
  • Temperature: 195 F
  • Body: Brass
  • Inner Components: Stainless Steel, Plastic
  • Ship Weight: 1.0 lbs.

UPC:

  • GTIN: 682491142546
