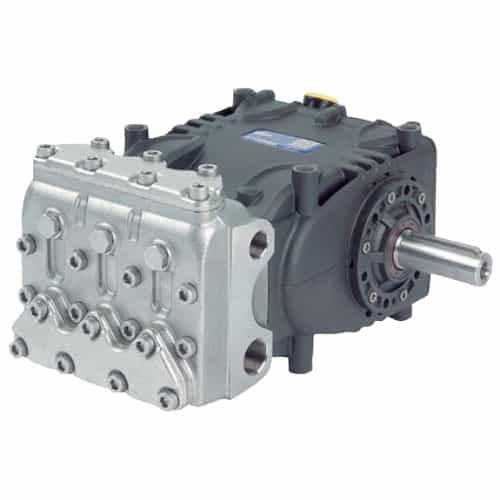

General Pump KE28HA Stainless Steel Triplex Plunger Pump - 16.1 GPM, 2170 PSI, 1450 RPM, 25.0 HP
(0)
A plunger pump designed so the shaft can easily be switched from side-to-side. Corrosion resistant manifold construction. Provides a maximum flow rate of 16.1 GPM.
The General Pump KE28HA is a triplex plunger pump that features a unique patent pending symmetrical power end design with top and bottom mounting holes allowing the side which the shaft located to easily be converted from right to left meeting the requirements of your application. Shaft accepts SAE-B hydraulic drive bell housings and flexible couplers. Pump delivers a maximum flow rate of 16.1 GPM making it great for applications requiring high flow rates. The manifold is constructed with 420 stainless steel manifold that is treated nickel with nickel to deliver maximum protection from corrosion.
Specifications:
Flow Rate: 16.1 GPM
Maximum Pressure: 2170 PSI
Maximum Speed: 1450 RPM
Horsepower: 25
Maximum Inlet Pressure: 45 PSI
Maximum Fluid Temperature: 140° F
Inlet Port Thread: 1” NPT-F
Discharge Port Thread: 1/2” NPT-F
Shaft Diameter: 1.181”/30 mm
Bore: 1.102 in./28 mm
Stroke: 0.9055”/23 mm
Pump Dimensions: 15.2” x 13.4” x 7.7”
Crankcase Oil Capacity: 67.63 oz. (use GP Series 220 Oil)
Shipping Weight: 88 lbs.
GTIN: 682491064152
Features:
A “New Generation” Pump
Triplex Plunger Design
Patent-pending, symmetrical power end design with top and bottom mounting holes for easy conversion of the shaft to the other side
Low-high pressure packing design with integrated cooling system
High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
Splash lubrication
SAE-B hydraulic drive bell housing and flexible couplers available
Materials:
High resistance light alloy die cast aluminum crankcase
420 Stainless steel manifold, nickel treated
Taper roller bearings
Special antifriction, forged, light alloy connecting rods
Forged alloy steel crankshaft, hardened, tempered and nitrited
