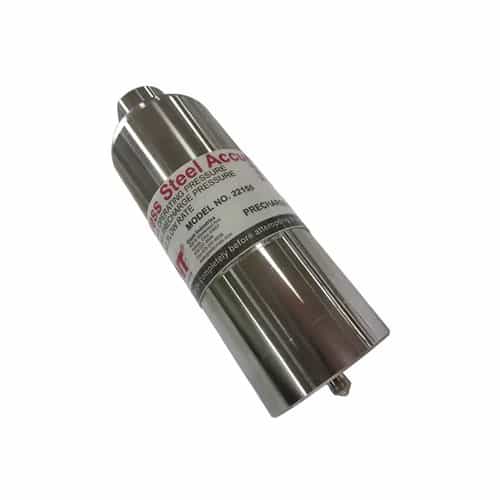

Giant Pumps 22155A-5100 Stainless Steel Pulsation Dampener, 30 GPM, 3/4 in. MNPT

Brand:
Mfr. Model #:
22155A-5100
KR Part #:
PU22155A-5100
Weight:
1.00 lbs
Usually Ships in 2 Weeks
This is Hazardous Material.
A $38.50 fee may be added to your order.
MSRP
$335.55
Now Only!
$276.34
starstarstarstarstar (0)
Stainless steel housing pulsation dampener with a rubber bladder that's precharged with nitrogen. Absorbs pulsation from water movement, reduce pulsations down as low as 4%.



Technical Specifications

Max GPM: 30
Max PSI: 3000
Max Temperature: 200 degrees F
Inlet Port: 3/4 inch

Product Description

Pump Vibration Dampener

The Giant Pumps 22155A-5100 Pulsation Dampener is a device used with positive displacement pumps to reduce vibration and pulsation during operation. This dampener contains a rubber bladder that is precharged with nitrogen up to 50-60% of the system pressure. This vibration dampener is used to protect equipment and piping in a high-pressure system. Has a rebuildable design for easy service.

  • Flow Rate: 30 GPM (49 L/min)
  • Maximum Pressure: 3000 PSI (207 bar)
  • Pressure Maximum Charge: 1500 PSI (103 bar)
  • Both body and top are made of 316 stainless steel
  • Maximum Continuous Temperature: 200° Fahrenheit
  • Inlet: 3/4" MNPT
  • Weight: 10 lbs. (4.5 kg)
  • Rebuildable design
