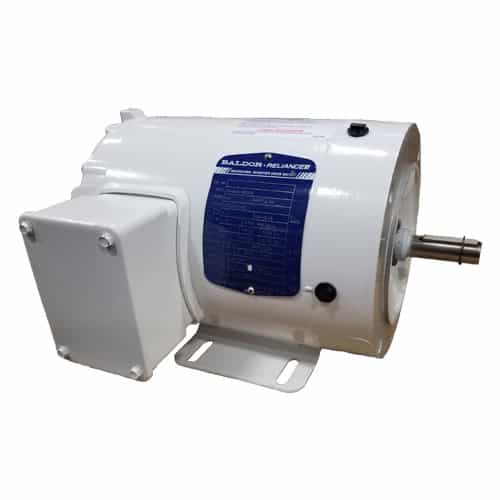

Three Phase Electric Motor

Designed for use in areas that experience frequent washdowns. Motor is totally enclosed and non-ventilated to prevent moisture from entering. Frame is constructed with steel. Useful in applications such as car washes, food, beverage, pharmaceuticals, conveyers, and pumps.

Specifications:

• Enclosure: TENV

• Frame: 56C

• Frame Material: Steel

• Frequency: 60.00 Hz

• Output @ Frequency: .500 HP @ 60 HZ

• Phase: 3

• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ

• Voltage @ Frequency: 208.0 V @ 60 HZ, 230.0 V @ 60 HZ, 460.0 V @ 60 HZ

• XP Class and Group: None

• XP Division: Not Applicable

• Agency Approvals: UR CSA

• Ambient Temperature: 40 °C

• Auxillary Box: No Auxillary Box

• Auxillary Box Lead Termination: None

• Base Indicator: Rigid

• Bearing Grease Type: Polyrex EM (-20F +300F)

• Current @ Voltage: .800 A @ 460.0 V, 1.600 A @ 230.0 V, 1.800 A @ 208.0 V

• Design Code: B

• Duty Rating: CONT

• Efficiency @ 100% Load: 75.5 %

• Electrically Isolated Bearing: Not Electrically Isolated

• High Voltage Full Load Amps: 0.8 a

• Front Face Code: Standard

• Insulation Class: H

• Inverter Code: Inverter Duty

• KVA Code: H

• Lifting Lugs: No Lifting Lugs

• Locked Bearing Indicator: Locked Bearing

• Max Speed: 6000 rpm

• Motor Lead Exit: Ko Box

• Motor Lead Termination: Flying Leads

• Motor Lead Quantity/Wire Size: 9 @ 18 AWG

• Motor Type: 3516M

• Mounting Arrangement: F1

• Number of Poles: 4

• Power Factor: 83

• Product Family: Wash Down

• Pulley End Bearing Type: Sealed Bearing

• Pulley Face Code: C-Face

• Pulley Shaft Indicator: Standard

• Service Factor: 1.00

• Shaft Diameter: 0.625 IN

• Shaft Extension Location: Pulley End

• Shaft Rotation: Reversible - Connected Standard

• Shaft Slinger Indicator: Shaft Slinger

• Speed: 1725 rpm

• Speed Code: Single Speed

• Motor Standards: NEMA

• Starting Method: Direct on line

• Thermal Device - Winding: Normally Closed Thermostat
