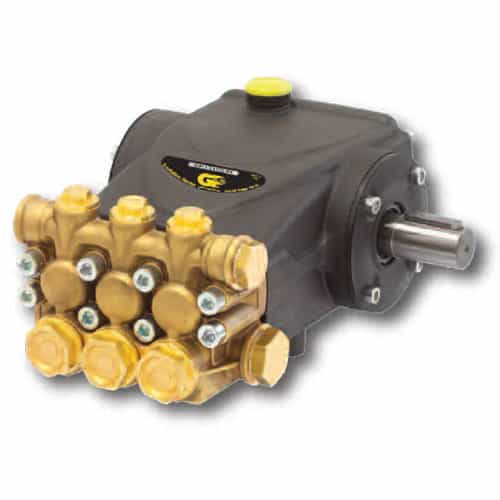

General Pump EP1306S34 EP Series 2.1 GPM 4000 PSI Triplex Plunger Pump

Brand:
Mfr. Model #:
EP1306S34
KR Part #:
GPEP1306S34
Weight:
15.40 lbs
GTIN:
682491066033
Call For Availability
MSRP
$995.00
Now Only!
$339.75
starstarstarstarstar (0)
General Pump EP Series 4,000 PSI ceramic triplex plunger pump with forged brass manifold.



Technical Specifications

Bore: 13 millimeter
Crankcase Capacity: 15 ounce
Horsepower: 5.8
Inlet Port: 1/2 inch
Max GPM: 2.1
Max PSI: 4000
Max Temperature: 160 degrees F
Shaft Diameter: 24 millimeter
Stroke: 6 millimeter

Product Description

Evolution EP Series Solid Shaft Triplex Plunger Pump

The EP1306S34 is an innovative triplex plunger pump with an outstanding lifespan. Solid ceramic plungers with a new, state of the art dual guide system reduces friction between plungers and seals, increasing the life of seals. A forged brass manifold increases working pressure to 4,000 PSI. The larger crank case design offered by the EP1306S34 allows for an oversized mechanical section, increasing oil capacity while reducing oil temperature for better cooling and better lubrication. Optimized outlet valves enable the pump to have a better volumetric efficiency while a redesigned plunger fastening system virtually eliminates the risk of excessive pressure build-up inside the plunger itself.

Pump Dimensions: 9.5" x 8.38" x 5.1"

  • Forged brass manifold with a working pressure of 4,000 PSI
  • Solid ceramic plungers with innovative dual glide system and plunger guide bushing
  • Dust protection chamber between crankcase and manifold
  • Optimized outlet valves
  • Dual lip oil seal
