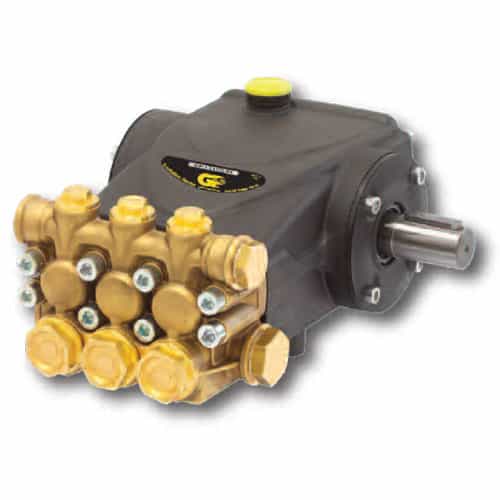

General Pump EP1310S34 EP Series Solid Shaft Triplex Plunger Pump - 3.2 GPM, 4000 PSI

Brand:
Mfr. Model #:
EP1310S34
KR Part #:
GPEP1310S34
Weight:
15.40 lbs
GTIN:
682491066057
Call For Availability
MSRP
$995.00
Now Only!
$339.75
starstarstarstarstar (0)
An EP Series 4,000 PSI triplex ceramic plunger pump with forged brass manifold from General Pump.



Technical Specifications

RPM: 3400
Bore: 13 millimeter
Shaft Diameter: 24 millimeter
Stroke: 10 millimeter
Max Temperature: 165 degrees F
Max PSI: 4000
Max GPM: 3.2
Inlet Port: 1/2 inch
Horsepower: 8.8
Crankcase Capacity: 15 ounce

Product Description

EP Series Triplex Plunger Pump - 3.2 GPM

The EP1310S34 is an innovative triplex plunger pump with a long lifespan. Solid ceramic plungers with a new, state of the art dual guide system reduces friction between plungers and seals, increasing their life. A forged brass manifold increases working pressure to 4,000 PSI. The larger crank case design offered by the EP1310S34 allows for an oversized mechanical section, increasing oil capacity while reducing oil temperature for better cooling and better lubrication. Optimized outlet valves enable the pump to have a better volumetric efficiency while a redesigned plunger fastening system virtually eliminates the risk of excessive pressure build-up inside the plunger itself.

Pump Dimensions: 9.5" x 8.38" x 5.1"
Features:

  • Forged brass manifold with a working pressure of 4,000 PSI
  • Solid ceramic plungers with innovative dual glide system and plunger guide bushing
  • Dust protection chamber between crankcase and manifold
  • Optimized outlet valves
  • Dual lip oil seal
Specifications:
  • Max Flow: 3.2 GPM
  • Max Discharge Pressure: 4000 PSI
  • Max Inlet Pressure: 125 PSI
  • RPM: 3400
  • Stroke: 10mm
  • Bore: 13mm
  • Shaft Diameter: 24mm
  • Oil Capacity: 15 oz.
  • Inlet: 1/2” - 14 BSP-F
  • Outlet: 3/8” - 19 BSP-F
  • Horsepower: 8.6
  • Max Temp: 165 degrees F
  • Weight: 15.4 lbs
