Giant Pump P218LE1CXU Plunger Pump, 3.4 GPM, 2500 PSI, Left Shaft, Electric Motor, Short Backend

Brand:
Mfr. Model #:
P218LE1CXU
KR Part #:
PUP218LE1CXU
Weight:
17.00 lbs
Call For Availability
MSRP
$1,091.99
Now Only!
$512.30

Manuals

starstarstarstarstar (0)
Aluminum crankcase plunger pump with ceramic plungers and a flange for NEMA 56C electric motors. Made in America.



Technical Specifications

Crankcase Capacity: 7.5 ounce
Shaft Diameter: 24 millimeter
RPM: 1750
Max Temperature: 160 degrees F
Stroke: 10 millimeter
Max PSI: 2500
Max GPM: 3.4
Inlet Port: 1/2 inch

Product Description

2500 PSI Left Mounted Plunger Pump

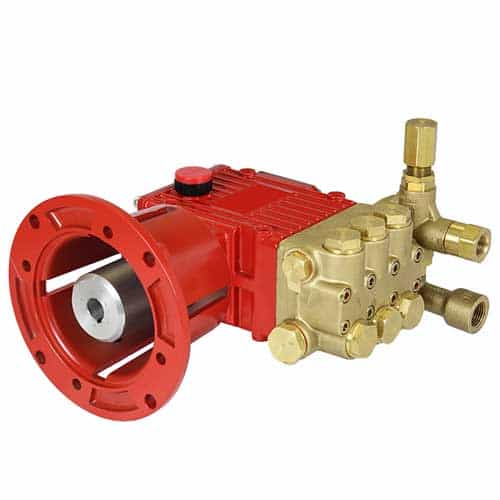

The Giant Pump P218LE1CXU high-pressure pump has a left-side mounted shaft and 18 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 3.4 GPM, a maximum pressure of 2500 PSI, and a 1750 RPM crankshaft speed. Features a flange for connection to NEMA 56C electric motor for direct drive. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:

  • Flow: 3.4 GPM
  • Pressure: (Continuous) 2000 PSI
  • Pressure: (Intermittent) 2500 PSI
  • Crankshaft Speed: 1750 RPM
  • Maximum Inlet Pressure: 145 PSI
  • Maximum Temperature: 160 °F
  • Plunger Diameter: 0.71" (18 mm)
  • Stroke: 0.39" (10.0 mm)
  • Crankshaft Diameter: 0.98" (24 mm)
  • Crankshaft Rotation: Top of pulley towards manifold
  • Key Width: 0.31" (8 mm)
  • Crankshaft Mounting: Left
  • Inlet Ports: (2) 1/2" BSP
  • Discharge Ports: (2) 3/8" BSP
  • Crankcase Oil Capacity: 7.5 fluid ounces
  • Extended Crankcase Oil Capacity: 9.0 fluid ounces
  • Weight: 11.7 lbs.
  • Volumetric Efficiency @ 1750 RPM: 0.94"

Key Component Material:

  • Manifold: Special brass
  • Plungers: Solid ceramic oxide
  • Valves: High grade stainless steel
  • Seals: Nitrile with fabric reinforcing
  • Gear End: Aluminum
