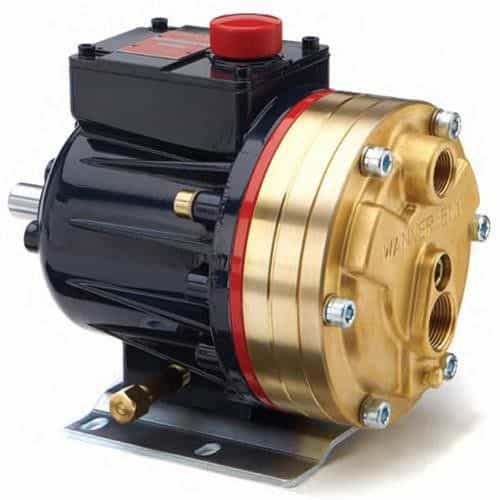

D-10 Series Seal-less Direct Drive Pump

The Hydra-Cell D10EKBTHFECA pump is part of the versatile line of D-10 pumps that function well in tough environments like car washes and industrial manufacturing mills. This shaft-driven pump has a high-quality brass head, stainless steel valves, and Elgiloy valve springs.

The D10EKBTHFECA pump is self-priming, can run dry without damage, and can handle the full spectrum of low to high viscosity fluids. Versatile, reliable pump for a wide range of applications!

Specifications:

• 8.8 GPM
• 1750 RPM
• Brass pump head
• Kel-Cel NPT ports
• 1" NPT inlet
• 3/4" NPT outlet
• 7/8" shaft diameter
• Buna-N diaphragm and o-rings
• 17-4 stainless steel valve and valve seat
• Elgiloy valve springs
• Celcon valve retainers
• Tapered roll bearings
• 10W30 standard oil
• 1.1 quartz oil capacity
• 500 microns maximum solids size
• 180° Fahrenheit maximum temperature
• Reverse shaft rotation (bi-directional)
• Self-priming

Features:

• Pumps the full spectrum of low-to-high viscosity fluids

• Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps

• Simple, compact design reduces initial investment and lowers maintenance costs

• Operational efficiencies reduce energy costs

• Able to run dry without damage or additional maintenance to the pump

• Tolerates non-ideal operating conditions

• Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace
