Giant Pumps P219RE2F Triplex Plunger Pump, 4.2 GPM, 2000 PSI, Right Shaft, 184 TC Flange

Brand:
Mfr. Model #:
P219RE2F
KR Part #:
PUP219RE2F
Weight:
19.80 lbs
Out of Stock - Pre-Order Now
MSRP
$982.79
Now Only!
$461.06
starstarstarstarstar (0)
Used in a variety of applications, these hard working pumps help get the job done. Features 184 TC electric motor flange and 1 1/8" aluminum coupler for direct drive.



Technical Specifications

Max GPM: 4.2
Max PSI: 2500
Max Temperature: 160 degrees F
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Bore: 18 millimeter
Stroke: 12.4 millimeter
Shaft Diameter: 24 millimeter
Crankcase Capacity: 7.5 oz

Product Description

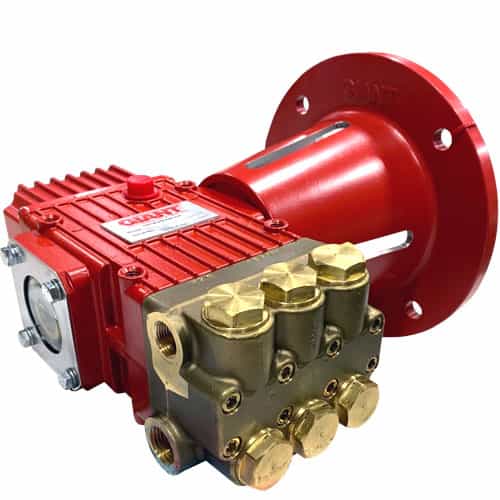

Right Mounted Plunger Pump

This Giant P219RE2F plunger pump has a right-side mounted shaft and a 184 TC electric motor flange featuring 7.25" bolts. Includes aluminum 1.125" coupler. This high-quality positive displacement plunger pump has a maximum flow rate of 4.2 GPM at 1750 RPM. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.

Specifications:

  • Flow: 4.2 GPM
  • Pressure: 2000 PSI
  • Pump Speed: 1750 RPM
  • Maximum Inlet Pressure: 145 PSI
  • Maximum Temperature: 160 °F
  • Plunger Diameter: 18 mm
  • Stroke: 12.4 mm
  • Crankshaft Diameter: 24 mm
  • Crankshaft Rotation: Top of pulley towards manifold
  • Crankshaft Mounting: Left
  • Inlet Ports: (2) 1/2" BSP
  • Discharge Ports: (2) 3/8" BSP
  • Crankcase Oil Capacity: 7.5 fluid ounces
  • Extended Crankcase Oil Capacity: 9.0 fluid ounces
  • Weight: 11.7 lbs.

Key Component Material:

  • Manifold: Special brass
  • Plungers: Solid ceramic oxide
  • Valves: High grade stainless steel
  • Seals: Nitrile with fabric reinforcing
  • Gear End: Aluminum
