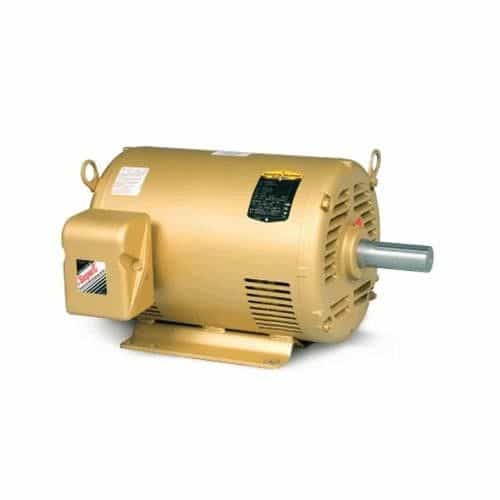

Baldor EM3211T Three Phase General Purpose Motor - 230/460 VAC, 1765 RPM, 182T Frame, 3 Horsepower
Brand:
Mfr. Model #:
EM3211T
KR Part #:
MBEM3211T
Weight:
69.40 lbs
GTIN:
781568104453
Availability:
4
(0)A 3 phase motor with a 182T frame. Used for general purpose applications. Handles 230/460 VAC currents and 1765 RPM.
Prop 65
Technical Specifications
Horsepower: 3
Phase: Three
Voltage AC: 230/460
RPM: 1765
Product Description
182T Frame Electric Motor
Baldor EM3211T is a motor designed with a open slotted band enclosure to vent heat and keep it cool and a 182T frame. These motors are ideal for general purpose applications involving compressors, pumps, fans, and conveyors. It is compatible with 230/460 VAC electrical currents. This 3 phase motor generates a maximum speed of 1765 RPM and 3 horsepower.Specifications:
- Product Number: EM3211T
- GTIN: 781568104453
- Enclosure: OPSB
- Frame: 182T
- Frame Material: Steel
- Frequency: 60.00 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: 3.000 HP @ 60 HZ
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency:
- 460.0 V @ 60 HZ
- 230.0 V @ 60 HZ
- XP Class and Group: None
- XP Division: Not Applicable
- Agency Approvals: NEMA_PREMIUM
- UR:
- NEMA PREMIUM
- CSA
- EEV
- Ambient Temperature: 40 °C
- Auxillary Box: No Auxillary Box
- Auxillary Box: Lead Termination None
- Base Indicator: Rigid
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Blower: None
- Current @ Voltage:
- 8.400 A @ 230.0 V
- 8.500 A @ 208.0 V
- 4.200 A @ 460.0 V
- Design Code: B
- Drip Cover: No Drip Cover
- Duty Rating: Continuous
- Efficiency @ 100% Load 89.5 %
- Electrically Isolated Bearing Not Electrically Isolated
- Feedback Device: NO FEEDBACK
- High Voltage Full Load Amps: 4.2 a
- Front Face Code: Standard
- Front Shaft Indicator: None
- Heater Indicator: No Heater
- Insulation Class: F
- Inverter Code: Inverter Ready
- KVA Code: K
- Lifting Lugs: Standard Lifting Lugs
- Locked Bearing Indicator: No Locked Bearing
- Motor Lead Exit: Ko Box
- Motor Lead Termination: Flying Leads
- Motor Lead Quantity/Wire Size: 9 @ 16 AWG
- Motor Type: 3630M
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 15.00"
- Power Factor: 74
- Product Family: General Purpose
- Pulley End Bearing Type: Ball
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Rodent Screen: None
- Service Factor: 1.15
- Shaft Diameter: 1.125 IN
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Speed: 1765 RPM
- Speed Code: Single Speed
- Motor Standards: NEMA
- Starting Method: Direct on line
- Thermal Device - Bearing: None
- Thermal Device - Winding: None
- Vibration Sensor Indicator: No Vibration Sensor
- Winding Thermal 1: None
- Winding Thermal 2: None
- Compressors
- Pumps
- Fans
- Conveyors
- Material Handling
- Machine Tool
