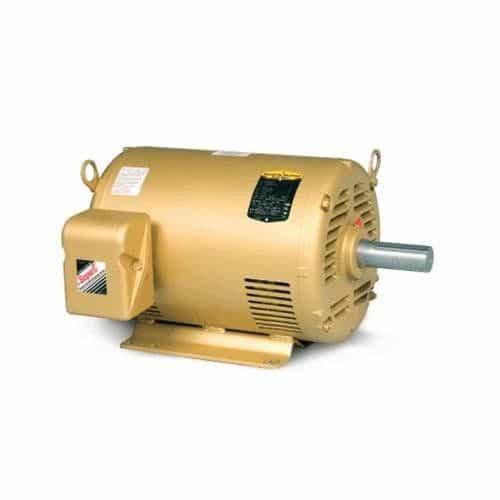

Baldor EM3218T Three Phase Open Slotted Band Motor - 5HP, 1750 RPM, 230/460 Volts, Frame 184T
Brand:
Mfr. Model #:
EM3218T
KR Part #:
MBEM3218T
Weight:
82.80 lbs
GTIN:
781568104569
(0)A three phase motor that generates 5 horsepower of energy to power your car wash equipment. Designed with a open slotted band enclosure to keep it cool. It handles a maximum speed of 1750 RPM.
Prop 65
Technical Specifications
Horsepower: 5
Phase: Three
RPM: 1750
Voltage AC: 230/460
Shaft Diameter: 1.125 inch
Phase: Three
Product Description
5 Horsepower - Electric General Purpose Motor
The Baldor EM3218T is a general purpose motor that operates using three phase power. It features an open slotted band enclosure that keeps the motor cool during operation. Designed with a 184T frame that is made with steel for durability and strength. Compatible with 230.0 VAC at 60 HZ, 460.0 VAC at 60 HZ. The motor runs at a maximum speed of 1750 RPM. Length of the shaft measures 1-1/8".Specifications:
- Enclosure: Open Slotted Band (OPSB)
- Frame: 184T
- Frame Material: Steel
- Frequency: 60.00 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: 5.000 HP @ 60 HZ
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency: 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
- XP Class and Group: None
- XP Division: Not Applicable
- Agency Approvals: UR, CSA, EEV, CSA
- Ambient Temperature: 40 °C
- Auxiliary Box: No Auxiliary Box
- Auxiliary Box Lead Termination: None
- Base Indicator: Rigid
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Blower: None
- Current @ Voltage: 13.200 A @ 230.0 V, 14.000 A @ 208.0 V, 6.600 A @ 460.0 V
- Design Code: B
- Drip Cover: No Drip Cover
- Duty Rating: CONT
- Efficiency @ 100% Load: 89.5 %
- Electrically Isolated Bearing: Not Electrically Isolated
- Feedback Device: NO FEEDBACK
- High Voltage Full Load Amps: 6.6 a
- Front Face Code: Standard
- Front Shaft Indicator: None
- Heater Indicator: No Heater
- Insulation Class: F
- Inverter Code: Inverter Ready
- KVA Code: J
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: No Locked Bearing
- Motor Lead Exit: Ko Box
- Motor Lead Termination: Flying Leads
- Motor Lead Quantity/Wire Size: 9 @ 16 AWG
- Motor Type: 3640M
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 16.50 IN
- Power Factor: 80
- Product Family: General Purpose
- Pulley End Bearing Type: Ball
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Rodent Screen: None
- Service Factor: 1.15
- Shaft Diameter: 1.125 IN
- Shaft Extension Location: Pulley End
- Shaft Length: 1-1/8"
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Speed: 1750 rpm
- Speed Code: Single Speed
- Motor Standards: NEMA
- Starting Method: Direct on line
- Weight: 82.80 lbs
- GTIN:781568104569
